Angiographic Catheter Specifications

Code↕	French Size↕	Length (cm)↕	OD (mm)↕	ID (mm)↕	Guidewire (inch)↕	Side Hole Number↕	Tip Shape↕	Static Burst Pressure (psi)↕
K03-500100100	5F	100	1.65	1.02	0.038	0	3D LIMA 90 °	1200
K03-400200100	4F	100	1.35	0.94	0.035	0	3D RC	1200
K03-400200125	4F	125	1.35	0.94	0.035	0	3D RC	1200
K03-500200100	5F	100	1.65	1.02	0.038	0	3D RC	1200
K03-500200125	5F	125	1.65	1.02	0.038	0	3D RC	1200
K03-600200100	6F	100	2	1.35	0.038	0	3D RC	1200
K03-600300100	6F	100	2	1.35	0.038	0	AL 1.5	1200
K03-400400100	4F	100	1.35	0.94	0.035	0	AL Ⅰ	1200
K03-400400125	4F	125	1.35	0.94	0.035	0	AL Ⅰ	1200
K03-500400100	5F	100	1.65	1.02	0.038	0	AL Ⅰ	1200
K03-500400125	5F	125	1.65	1.02	0.038	0	AL Ⅰ	1200
K03-600400100	6F	100	2	1.35	0.038	0	AL Ⅰ	1200
K03-600400125	6F	125	2	1.35	0.038	0	AL Ⅰ	1200
K03-600412125	6F	125	2	1.35	0.038	12	AL Ⅰ	1200
K03-400500100	4F	100	1.35	0.94	0.035	0	AL Ⅱ	1200
K03-400500125	4F	125	1.35	0.94	0.035	0	AL Ⅱ	1200
K03-500500100	5F	100	1.65	1.02	0.038	0	AL Ⅱ	1200
K03-600500100	6F	100	2	1.35	0.038	0	AL Ⅱ	1200
K03-600512100	6F	100	2	1.35	0.038	12	AL Ⅱ	1200
K03-600512125	6F	125	2	1.35	0.038	12	AL Ⅱ	1200
K03-400600100	4F	100	1.35	0.94	0.035	0	AL Ⅲ	1200
K03-400600110	4F	110	1.35	0.94	0.035	0	AL Ⅲ	1200
K03-500600100	5F	100	1.65	1.02	0.038	0	AL Ⅲ	1200
K03-500600125	5F	125	1.65	1.02	0.038	0	AL Ⅲ	1200
K03-600600100	6F	100	2	1.35	0.038	0	AL Ⅲ	1200
K03-600600125	6F	125	2	1.35	0.038	0	AL Ⅲ	1200
K03-400700100	4F	100	1.35	0.94	0.035	0	ARⅠMOD	1200
K03-400700110	4F	110	1.35	0.94	0.035	0	ARⅠMOD	1200
K03-500700100	5F	100	1.65	1.02	0.038	0	ARⅠMOD	1200
K03-500700125	5F	125	1.65	1.02	0.038	0	ARⅠMOD	1200
K03-600700100	6F	100	2	1.35	0.038	0	ARⅠMOD	1200
K03-600700125	6F	125	2	1.35	0.038	0	ARⅠMOD	1200
K03-400800100	4F	100	1.35	0.94	0.035	0	AR Ⅱ MOD	1200
K03-500800100	5F	100	1.65	1.02	0.038	0	AR Ⅱ MOD	1200
K03-500800125	5F	125	1.65	1.02	0.038	0	AR Ⅱ MOD	1200
K03-600800100	6F	100	2	1.35	0.038	0	AR Ⅱ MOD	1200
K03-600800125	6F	125	2	1.35	0.038	0	AR Ⅱ MOD	1200
K03-400900100	4F	100	1.35	0.94	0.035	0	AR MOD	1200
K03-400900125	4F	125	1.35	0.94	0.035	0	AR MOD	1200
K03-500900100	5F	100	1.65	1.02	0.038	0	AR MOD	1200
K03-600900100	6F	100	2	1.35	0.038	0	AR MOD	1200
K03-401002100	4F	100	1.35	0.94	0.035	2	BARBEAU	1200
K03-501002100	5F	100	1.65	1.02	0.038	2	BARBEAU	1200
K03-501002125	5F	125	1.65	1.02	0.038	2	BARBEAU	1200
K03-401100065	4F	65	1.35	0.94	0.035	0	BER	1200
K03-401100100	4F	100	1.35	0.94	0.035	0	BER	1200
K03-501100065	5F	65	1.65	1.02	0.038	0	BER	1200
K03-501100100	5F	100	1.65	1.02	0.038	0	BER	1200
K03-401200065	4F	65	1.35	0.94	0.035	0	BERⅡ	1200
K03-401200100	4F	100	1.35	0.94	0.035	0	BERⅡ	1200
K03-501200040	5F	40	1.65	1.02	0.038	0	BERⅡ	1200
K03-501200065	5F	65	1.65	1.02	0.038	0	BERⅡ	1200
K03-501200100	5F	100	1.65	1.02	0.038	0	BERⅡ	1200
K03-401300100	4F	100	1.35	0.94	0.035	0	BL	1200
K03-501300100	5F	100	1.65	1.02	0.038	0	BL	1200
K03-401400110	4F	110	1.35	0.94	0.035	0	BR	1200
K03-501400100	5F	100	1.65	1.02	0.038	0	BR	1200
K03-601400100	6F	100	2	1.35	0.038	0	BR	1200
K03-501500100	5F	100	1.65	1.02	0.038	0	BRC	1200
K03-401600065	4F	65	1.35	0.94	0.035	0	C1	1200
K03-401602065	4F	65	1.35	0.94	0.035	2	C1	1200
K03-401602100	4F	100	1.35	0.94	0.035	2	C1	1200
K03-501600065	5F	65	1.65	1.02	0.038	0	C1	1200
K03-501602065	5F	65	1.65	1.02	0.038	2	C1	1200
K03-401700065	4F	65	1.35	0.94	0.035	0	C2	1200
K03-401702065	4F	65	1.35	0.94	0.035	2	C2	1200
K03-401700080	4F	80	1.35	0.94	0.035	0	C2	1200
K03-401700100	4F	100	1.35	0.94	0.035	0	C2	1200
K03-501700065	5F	65	1.65	1.02	0.038	0	C2	1200
K03-501702065	5F	65	1.65	1.02	0.038	2	C2	1200
K03-501700080	5F	80	1.65	1.02	0.038	0	C2	1200
K03-501700100	5F	100	1.65	1.02	0.038	0	C2	1200
K03-401800065	4F	65	1.35	0.94	0.035	0	C3	1200
K03-501800065	5F	65	1.65	1.02	0.038	0	C3	1200
K03-501802065	5F	65	1.65	1.02	0.038	2	C3	1200
K03-401900100	4F	100	1.35	0.94	0.035	0	CAS 1	1200
K03-401904100	4F	100	1.35	0.94	0.035	4	CAS 1	1200
K03-501900100	5F	100	1.65	1.02	0.038	0	CAS 1	1200
K03-501904100	5F	100	1.65	1.02	0.038	4	CAS 1	1200
K03-402000100	4F	100	1.35	0.94	0.035	0	CAS 2	1200
K03-502004080	5F	80	1.65	1.02	0.038	4	CAS 2	1200
K03-502002125	5F	125	1.65	1.02	0.038	2	CAS 2	1200
K03-402100080	4F	80	1.35	0.94	0.035	0	CELIAC	1200
K03-402200100	4F	100	1.35	0.94	0.035	0	EL GAMAL	1200
K03-402306080	4F	80	1.35	0.94	0.035	6	GENSINI	1200
K03-402400100	4F	100	1.35	0.94	0.035	0	H1	1200
K03-402400125	4F	125	1.35	0.94	0.035	0	H1	1200
K03-502400100	5F	100	1.65	1.02	0.038	0	H1	1200
K03-502400125	5F	125	1.65	1.02	0.038	0	H1	1200
K03-602400100	6F	100	2	1.35	0.038	0	H1	1200
K03-602400125	6F	125	2	1.35	0.038	0	H1	1200
K03-502500090	5F	90	1.65	1.02	0.038	0	H1 MOD	1200
K03-402600100	4F	100	1.35	0.94	0.035	0	H3	1200
K03-502600100	5F	100	1.65	1.02	0.038	0	H3	1200
K03-502700100	5F	100	1.65	1.02	0.038	0	HN 3	1200
K03-402800100	4F	100	1.35	0.94	0.035	0	HN 4	1200
K03-502800100	5F	100	1.65	1.02	0.038	0	HN 4	1200
K03-402900065	4F	65	1.35	0.94	0.035	0	IM	1200
K03-402900100	4F	100	1.35	0.94	0.035	0	IM	1200
K03-402900125	4F	125	1.35	0.94	0.035	0	IM	1200
K03-502900065	5F	65	1.65	1.02	0.038	0	IM	1200
K03-502900080	5F	80	1.65	1.02	0.038	0	IM	1200
K03-502900100	5F	100	1.65	1.02	0.038	0	IM	1200
K03-502900125	5F	125	1.65	1.02	0.038	0	IM	1200
K03-602900100	6F	100	2	1.35	0.038	0	IM	1200
K03-403000100	4F	100	1.35	0.94	0.035	0	IM MOD	1200
K03-503000100	5F	100	1.65	1.02	0.038	0	IM MOD	1200
K03-503100110	5F	110	1.65	1.02	0.038	0	J Curve	1200
K03-403200100	4F	100	1.35	0.94	0.035	0	JB 1	1200
K03-403200120	4F	120	1.35	0.94	0.035	0	JB 1	1200
K03-503200100	5F	100	1.65	1.02	0.038	0	JB 1	1200
K03-403300100	4F	100	1.35	0.94	0.035	0	JB 2	1200
K03-403300120	4F	120	1.35	0.94	0.035	0	JB 2	1200
K03-503300100	5F	100	1.65	1.02	0.038	0	JB 2	1200
K03-603300125	6F	125	2	1.35	0.038	0	JB 2	1200
K03-503400100	5F	100	1.65	1.02	0.038	0	JB 3	1200
K03-403500100	4F	100	1.35	0.94	0.035	0	JCL 3.5	1200
K03-503500100	5F	100	1.65	1.02	0.038	0	JCL 3.5	1200
K03-403600100	4F	100	1.35	0.94	0.035	0	JCL 4	1200
K03-503600100	5F	100	1.65	1.02	0.038	0	JCL 4	1200
K03-403700100	4F	100	1.35	0.94	0.035	0	JL 1	1200
K03-403800080	4F	80	1.35	0.94	0.035	0	JL 2	1200
K03-503800080	5F	80	1.65	1.02	0.038	0	JL 2	1200
K03-403900065	4F	65	1.35	0.94	0.035	0	JL 3	1200
K03-403900100	4F	100	1.35	0.94	0.035	0	JL 3	1200
K03-503900100	5F	100	1.65	1.02	0.038	0	JL 3	1200
K03-603900100	6F	100	2	1.35	0.038	0	JL 3	1200
K03-404000080	4F	80	1.35	0.94	0.035	0	JL 3.5	1200
K03-404000100	4F	100	1.35	0.94	0.035	0	JL 3.5	1200
K03-504000100	5F	100	1.65	1.02	0.038	0	JL 3.5	1200
K03-604000100	6F	100	2	1.35	0.038	0	JL 3.5	1200
K03-404100100	4F	100	1.35	0.94	0.035	0	JL 4	1200
K03-404102100	4F	100	1.35	0.94	0.035	2	JL 4	1200
K03-404103100	4F	100	1.35	0.94	0.035	3	JL 4	1200
K03-404100125	4F	125	1.35	0.94	0.035	0	JL 4	1200
K03-504100100	5F	100	1.65	1.02	0.038	0	JL 4	1200
K03-504102100	5F	100	1.65	1.02	0.038	2	JL 4	1200
K03-504100125	5F	125	1.65	1.02	0.038	0	JL 4	1200
K03-604100100	6F	100	2	1.35	0.038	0	JL 4	1200
K03-604100125	6F	125	2	1.35	0.038	0	JL 4	1200
K03-504201100	5F	100	1.65	1.02	0.038	1	JL 4 MOD	1200
K03-504300100	5F	100	1.65	1.02	0.038	0	JL 4 ST	1200
K03-404400100	4F	100	1.35	0.94	0.035	0	JL 4.5	1200
K03-504400100	5F	100	1.65	1.02	0.038	0	JL 4.5	1200
K03-604400100	6F	100	2	1.35	0.038	0	JL 4.5	1200
K03-604400125	6F	125	2	1.35	0.038	0	JL 4.5	1200
K03-404500100	4F	100	1.35	0.94	0.035	0	JL 6	1200
K03-404500125	4F	125	1.35	0.94	0.035	0	JL 6	1200
K03-504500100	5F	100	1.65	1.02	0.038	0	JL 6	1200
K03-504500125	5F	125	1.65	1.02	0.038	0	JL 6	1200
K03-604500100	6F	100	2	1.35	0.038	0	JL 6	1200
K03-604500125	6F	125	2	1.35	0.038	0	JL 6	1200
K03-504600100	5F	100	1.65	1.02	0.038	0	JL 7	1200
K03-504600125	5F	125	1.65	1.02	0.038	0	JL 7	1200
K03-604600100	6F	100	2	1.35	0.038	0	JL 7	1200
K03-404700080	4F	80	1.35	0.94	0.035	0	JR 2	1200
K03-404800080	4F	80	1.35	0.94	0.035	0	JR 2.5	1200
K03-404900100	4F	100	1.35	0.94	0.035	0	JR 3	1200
K03-405000065	4F	65	1.35	0.94	0.035	0	JR 3.5	1200
K03-405000100	4F	100	1.35	0.94	0.035	0	JR 3.5	1200
K03-505000100	5F	100	1.65	1.02	0.038	0	JR 3.5	1200
K03-605000100	6F	100	2	1.35	0.038	0	JR 3.5	1200
K03-605000125	6F	125	2	1.35	0.038	0	JR 3.5	1200
K03-405100100	4F	100	1.35	0.94	0.035	0	JR 4	1200
K03-405102100	4F	100	1.35	0.94	0.035	2	JR 4	1200
K03-405103100	4F	100	1.35	0.94	0.035	3	JR 4	1200
K03-405100125	4F	125	1.35	0.94	0.035	0	JR 4	1200
K03-505100100	5F	100	1.65	1.02	0.038	0	JR 4	1200
K03-505100125	5F	125	1.65	1.02	0.038	0	JR 4	1200
K03-605100100	6F	100	2	1.35	0.038	0	JR 4	1200
K03-605100125	6F	125	2	1.35	0.038	0	JR 4	1200
K03-405200100	4F	100	1.35	0.94	0.035	0	JR 4 MOD	1200
K03-505200100	5F	100	1.65	1.02	0.038	0	JR 4 MOD	1200
K03-605200100	6F	100	2	1.35	0.038	0	JR 4 MOD	1200
K03-605200125	6F	125	2	1.35	0.038	0	JR 4 MOD	1200
K03-405300100	4F	100	1.35	0.94	0.035	0	JR 4 ST	1200
K03-505300100	5F	100	1.65	1.02	0.038	0	JR 4 ST	1200
K03-605300100	6F	100	2	1.35	0.038	0	JR 4 ST	1200
K03-405400100	4F	100	1.35	0.94	0.035	0	JR 5	1200
K03-505400100	5F	100	1.65	1.02	0.038	0	JR 5	1200
K03-605400100	6F	100	2	1.35	0.038	0	JR 5	1200
K03-405500100	4F	100	1.35	0.94	0.035	0	JR 5 MOD	1200
K03-505500100	5F	100	1.65	1.02	0.038	0	JR 5 MOD	1200
K03-605500100	6F	100	2	1.35	0.038	0	JR 5 MOD	1200
K03-405600100	4F	100	1.35	0.94	0.035	0	JR 6	1200
K03-505600100	5F	100	1.65	1.02	0.038	0	JR 6	1200
K03-605600100	6F	100	2	1.35	0.038	0	JR 6	1200
K03-405700100	4F	100	1.35	0.94	0.035	0	LCB	1200
K03-505700100	5F	100	1.65	1.02	0.038	0	LCB	1200
K03-505700125	5F	125	1.65	1.02	0.038	0	LCB	1200
K03-605700100	6F	100	2	1.35	0.038	0	LCB	1200
K03-505800100	5F	100	1.65	1.02	0.038	0	LIMA	1200
K03-405900100	4F	100	1.35	0.94	0.035	0	MAN	1200
K03-505900100	5F	100	1.65	1.02	0.038	0	MAN	1200
K03-406000065	4F	65	1.35	0.94	0.035	0	MP A1	1200
K03-406000100	4F	100	1.35	0.94	0.035	0	MP A1	1200
K03-406000125	4F	125	1.35	0.94	0.035	0	MP A1	1200
K03-506000065	5F	65	1.65	1.02	0.038	0	MP A1	1200
K03-506000080	5F	80	1.65	1.02	0.038	0	MP A1	1200
K03-506000100	5F	100	1.65	1.02	0.038	0	MP A1	1200
K03-506000125	5F	125	1.65	1.02	0.038	0	MP A1	1200
K03-406100065	4F	65	1.35	0.94	0.035	0	MP A1(I)	1200
K03-406100125	4F	125	1.35	0.94	0.035	0	MP A1(I)	1200
K03-506100065	5F	65	1.65	1.02	0.038	0	MP A1(I)	1200
K03-506100125	5F	125	1.65	1.02	0.038	0	MP A1(I)	1200
K03-406200065	4F	65	1.35	0.94	0.035	0	MP A2	1200
K03-406200080	4F	80	1.35	0.94	0.035	0	MP A2	1200
K03-406202080	4F	80	1.35	0.94	0.035	2	MP A2	1200
K03-406200100	4F	100	1.35	0.94	0.035	0	MP A2	1200
K03-406202100	4F	100	1.35	0.94	0.035	2	MP A2	1200
K03-406200125	4F	125	1.35	0.94	0.035	0	MP A2	1200
K03-506200065	5F	65	1.65	1.02	0.038	0	MP A2	1200
K03-506200080	5F	80	1.65	1.02	0.038	0	MP A2	1200
K03-506202080	5F	80	1.65	1.02	0.038	2	MP A2	1200
K03-506200100	5F	100	1.65	1.02	0.038	0	MP A2	1200
K03-506202100	5F	100	1.35	0.94	0.035	2	MP A2	1200
K03-506200125	5F	125	1.65	1.02	0.038	0	MP A2	1200
K03-606200050	6F	50	2	1.35	0.038	0	MP A2	1200
K03-606200100	6F	100	2	1.35	0.038	0	MP A2	1200
K03-606202125	6F	125	2	1.35	0.038	2	MP A2	1200
K03-406302080	4F	80	1.35	0.94	0.035	2	MP A2(I)	1200
K03-506302080	5F	80	1.65	1.02	0.038	2	MP A2(I)	1200
K03-506302100	5F	100	1.65	1.02	0.038	2	MP A2(I)	1200
K03-506302125	5F	125	1.65	1.02	0.038	2	MP A2(I)	1200
K03-406402065	4F	65	1.35	0.94	0.035	2	MP B2	1200
K03-406402100	4F	100	1.35	0.94	0.035	2	MP B2	1200
K03-506400100	5F	100	1.65	1.02	0.038	0	MP B2	1200
K03-606400100	6F	100	2	1.35	0.038	0	MP B2	1200
K03-506500065	5F	65	1.65	1.02	0.038	0	PIER	1200
K03-406605065	4F	65	1.35	0.94	0.035	5	PIG	1200
K03-406605090	4F	90	1.35	0.94	0.035	5	PIG	1200
K03-406605100	4F	100	1.35	0.94	0.035	5	PIG	1200
K03-406600110	4F	110	1.35	0.94	0.035	0	PIG	1200
K03-406604110	4F	110	1.35	0.94	0.035	4	PIG	1200
K03-406605110	4F	110	1.35	0.94	0.035	5	PIG	1200
K03-406606110	4F	110	1.35	0.94	0.035	6	PIG	1200
K03-406608110	4F	110	1.35	0.94	0.035	8	PIG	1200
K03-406606125	4F	125	1.35	0.94	0.035	6	PIG	1200
K03-506605065	5F	65	1.65	1.02	0.038	5	PIG	1200
K03-506608065	5F	65	1.65	1.02	0.038	8	PIG	1200
K03-506610065	5F	65	1.65	1.02	0.038	10	PIG	1200
K03-506605090	5F	90	1.65	1.02	0.038	5	PIG	1200
K03-506600100	5F	100	1.65	1.02	0.038	0	PIG	1200
K03-506605100	5F	100	1.65	1.02	0.038	5	PIG	1200
K03-506605110	5F	110	1.65	1.02	0.038	5	PIG	1200
K03-506606110	5F	110	1.65	1.02	0.038	6	PIG	1200
K03-506608110	5F	110	1.65	1.02	0.038	8	PIG	1200
K03-506602125	5F	125	1.65	1.02	0.038	2	PIG	1200
K03-506604125	5F	125	1.65	1.02	0.038	4	PIG	1200
K03-506606125	5F	125	1.65	1.02	0.038	6	PIG	1200
K03-606600110	6F	110	2	1.35	0.038	0	PIG	1200
K03-606606110	6F	110	2	1.35	0.038	6	PIG	1200
K03-606608110	6F	110	2	1.35	0.038	8	PIG	1200
K03-606606125	6F	125	2	1.35	0.038	6	PIG	1200
K03-406700110	4F	110	1.35	0.94	0.035	0	PIG 145°	1200
K03-406706110	4F	110	1.35	0.94	0.035	6	PIG 145°	1200
K03-406706125	4F	125	1.35	0.94	0.035	6	PIG 145°	1200
K03-506700110	5F	110	1.65	1.02	0.038	0	PIG 145°	1200
K03-506706110	5F	110	1.65	1.02	0.038	6	PIG 145°	1200
K03-606700110	6F	110	2	1.35	0.038	0	PIG 145°	1200
K03-606706110	6F	110	2	1.35	0.038	6	PIG 145°	1200
K03-506800110	5F	110	1.65	1.02	0.038	0	PIG 155°	1200
K03-506806110	5F	110	1.65	1.02	0.038	6	PIG 155°	1200
K03-506806125	5F	125	1.65	1.02	0.038	6	PIG 155°	1200
K03-606806110	6F	110	2	1.35	0.038	6	PIG 155°	1200
K03-606806125	6F	125	2	1.35	0.038	6	PIG 155°	1200
K03-406900110	4F	110	1.35	0.94	0.035	0	PIG 155°MOD	1200
K03-406906110	4F	110	1.35	0.94	0.035	6	PIG 155°MOD	1200
K03-607000110	6F	110	2	1.35	0.038	0	PIG 155°ST	1200
K03-507106110	5F	110	1.65	1.02	0.038	6	PIG 165°	1200
K03-607200100	6F	100	2	1.35	0.038	0	RB	1200
K03-507300100	5F	100	1.65	1.02	0.038	0	RBL 3.5	1200
K03-407402100	4F	100	1.35	0.94	0.035	2	RBL 4	1200
K03-507400100	5F	100	1.65	1.02	0.038	0	RBL 4	1200
K03-507402100	5F	100	1.65	1.02	0.038	2	RBL 4	1200
K03-507400110	5F	110	1.65	1.02	0.038	0	RBL 4	1200
K03-607400100	6F	100	2	1.35	0.038	0	RBL 4	1200
K03-607402100	6F	100	2	1.35	0.038	2	RBL 4	1200
K03-507500100	5F	100	1.65	1.02	0.038	0	RBL 4.5	1200
K03-607500100	6F	100	2	1.35	0.038	0	RBL 4.5	1200
K03-407602100	4F	100	1.35	0.94	0.035	2	RBL 5	1200
K03-507600100	5F	100	1.65	1.02	0.038	0	RBL 5	1200
K03-507602100	5F	100	1.65	1.02	0.038	2	RBL 5	1200
K03-507600110	5F	110	1.65	1.02	0.038	0	RBL 5	1200
K03-607600100	6F	100	2	1.35	0.038	0	RBL 5	1200
K03-607602100	6F	100	2	1.35	0.038	2	RBL 5	1200
K03-507700110	5F	110	1.65	1.02	0.038	0	RBL- 4C	1200
K03-507801080	5F	80	1.65	1.02	0.038	1	RBL-A	1200
K03-507800100	5F	100	1.65	1.02	0.038	0	RBL-A	1200
K03-507801100	5F	100	1.65	1.02	0.038	1	RBL-A	1200
K03-407900100	4F	100	1.35	0.94	0.035	0	JL 5	1200
K03-407900125	4F	125	1.35	0.94	0.035	0	JL 5	1200
K03-407902125	4F	125	1.35	0.94	0.035	2	JL 5	1200
K03-507900100	5F	100	1.65	1.02	0.038	0	JL 5	1200
K03-507900110	5F	110	1.65	1.02	0.038	0	JL 5	1200
K03-607900100	6F	100	2	1.35	0.038	0	JL 5	1200
K03-607900125	6F	125	2	1.35	0.038	0	JL 5	1200
K03-607902125	6F	125	2	1.35	0.038	2	JL 5	1200
K03-508000100	5F	100	1.65	1.02	0.038	0	RBMP	1200
K03-508002100	5F	100	1.65	1.02	0.038	2	RBMP	1200
K03-608000100	6F	100	2	1.35	0.038	0	RBMP	1200
K03-408100065	4F	65	1.35	0.94	0.035	0	RC 1	1200
K03-508100065	5F	65	1.65	1.02	0.038	0	RC 1	1200
K03-408200065	4F	65	1.35	0.94	0.035	0	RC 2	1200
K03-508200065	5F	65	1.65	1.02	0.038	0	RC 2	1200
K03-408300100	4F	100	1.35	0.94	0.035	0	RCB	1200
K03-508300100	5F	100	1.65	1.02	0.038	0	RCB	1200
K03-508300125	5F	125	1.65	1.02	0.038	0	RCB	1200
K03-608300100	6F	100	2	1.35	0.038	0	RCB	1200
K03-408400080	4F	80	1.35	0.94	0.035	0	RDC A1	1200
K03-508400080	5F	80	1.65	1.02	0.038	0	RDC A1	1200
K03-508402100	5F	100	1.65	1.02	0.038	2	RDC A1	1200
K03-508502065	5F	65	1.65	1.02	0.038	2	RDC A2	1200
K03-508502080	5F	80	1.65	1.02	0.038	2	RDC A2	1200
K03-508502100	5F	100	1.65	1.02	0.038	2	RDC A2	1200
K03-508602065	5F	65	1.65	1.02	0.038	2	RDC A2(I)	1200
K03-508602100	5F	100	1.65	1.02	0.038	2	RDC A2(I)	1200
K03-408700080	4F	80	1.35	0.94	0.035	0	RH	1200
K03-508700080	5F	80	1.65	1.02	0.038	0	RH	1200
K03-408800065	4F	65	1.35	0.94	0.035	0	RIM	1200
K03-508800065	5F	65	1.65	1.02	0.038	0	RIM	1200
K03-408900065	4F	65	1.35	0.94	0.035	0	SHK 0.8	1200
K03-508900065	5F	65	1.65	1.02	0.038	0	SHK 0.8	1200
K03-508900080	5F	80	1.65	1.02	0.038	0	SHK 0.8	1200
K03-409000065	4F	65	1.35	0.94	0.035	0	SHK 1.0	1200
K03-509000065	5F	65	1.65	1.02	0.038	0	SHK 1.0	1200
K03-409100100	4F	100	1.35	0.94	0.035	0	SIM 1	1200
K03-509100100	5F	100	1.65	1.02	0.038	0	SIM 1	1200
K03-509102100	5F	100	1.65	1.02	0.038	2	SIM 1	1200
K03-509100125	5F	125	1.65	1.02	0.038	0	SIM 1	1200
K03-609100125	6F	125	2	1.35	0.038	0	SIM 1	1200
K03-409200100	4F	100	1.35	0.94	0.035	0	SIM 2	1200
K03-409200125	4F	125	1.35	0.94	0.035	0	SIM 2	1200
K03-509200100	5F	100	1.65	1.02	0.038	0	SIM 2	1200
K03-509202100	5F	100	1.65	1.02	0.038	2	SIM 2	1200
K03-509200125	5F	125	1.65	1.02	0.038	0	SIM 2	1200
K03-609200100	6F	100	2	1.35	0.038	0	SIM 2	1200
K03-609200125	6F	125	2	1.35	0.038	0	SIM 2	1200
K03-409300100	4F	100	1.35	0.94	0.035	0	SIM 3	1200
K03-509300100	5F	100	1.65	1.02	0.038	0	SIM 3	1200
K03-509302100	5F	100	1.65	1.02	0.038	2	SIM 3	1200
K03-409402080	4F	80	1.35	0.94	0.035	2	SON 1	1200
K03-409402100	4F	100	1.35	0.94	0.035	2	SON 1	1200
K03-509400080	5F	80	1.65	1.02	0.038	0	SON 1	1200
K03-509400100	5F	100	1.65	1.02	0.038	0	SON 1	1200
K03-509404125	5F	125	1.65	1.02	0.038	4	SON 1	1200
K03-609400100	6F	100	2	1.35	0.038	0	SON 1	1200
K03-609404100	6F	100	2	1.35	0.038	4	SON 1	1200
K03-509500100	5F	100	1.65	1.02	0.038	0	SON 1.5	1200
K03-509504125	5F	125	1.65	1.02	0.038	4	SON 1.5	1200
K03-409602080	4F	80	1.35	0.94	0.035	2	SON 2	1200
K03-409602100	4F	100	1.35	0.94	0.035	2	SON 2	1200
K03-509600080	5F	80	1.65	1.02	0.038	0	SON 2	1200
K03-509600100	5F	100	1.65	1.02	0.038	0	SON 2	1200
K03-509602100	5F	100	1.65	1.02	0.038	2	SON 2	1200
K03-509600110	5F	110	1.65	1.02	0.038	0	SON 2	1200
K03-609600100	6F	100	2	1.35	0.038	0	SON 2	1200
K03-609604100	6F	100	2	1.35	0.038	4	SON 2	1200
K03-509702100	5F	100	1.65	1.02	0.038	2	SON 3	1200
K03-409800100	4F	100	1.35	0.94	0.035	0	SRC	1200
K03-509800100	5F	100	1.65	1.02	0.038	0	SRC	1200
K03-609800100	6F	100	2	1.35	0.038	0	SRC	1200
K03-409900065	4F	65	1.35	0.94	0.035	0	STR	1200
K03-409905065	4F	65	1.35	0.94	0.035	5	STR	1200
K03-409900090	4F	90	1.35	0.94	0.035	0	STR	1200
K03-409905090	4F	90	1.35	0.94	0.035	5	STR	1200
K03-409900100	4F	100	1.35	0.94	0.035	0	STR	1200
K03-409905100	4F	100	1.35	0.94	0.035	5	STR	1200
K03-409905110	4F	110	1.35	0.94	0.035	5	STR	1200
K03-409900125	4F	125	1.35	0.94	0.035	0	STR	1200
K03-509900065	5F	65	1.65	1.02	0.038	0	STR	1200
K03-509905065	5F	65	1.65	1.02	0.038	5	STR	1200
K03-509905090	5F	90	1.65	1.02	0.038	5	STR	1200
K03-509900100	5F	100	1.65	1.02	0.038	0	STR	1200
K03-509905100	5F	100	1.65	1.02	0.038	5	STR	1200
K03-509905110	5F	110	1.65	1.02	0.038	5	STR	1200
K03-509900125	5F	125	1.65	1.02	0.038	0	STR	1200
K03-609900100	6F	100	2	1.35	0.038	0	STR	1200
K03-410005065	4F	65	1.35	0.94	0.035	5	UF	1200
K03-410005090	4F	90	1.35	0.94	0.035	5	UF	1200
K03-510005065	5F	65	1.65	1.02	0.038	5	UF	1200
K03-510005090	5F	90	1.65	1.02	0.038	5	UF	1200
K03-510005110	5F	110	1.65	1.02	0.038	5	UF	1200
K03-610008065	6F	65	2	1.35	0.038	8	UF	1200
K03-610008090	6F	90	2	1.35	0.038	8	UF	1200
K03-410100080	4F	80	1.35	0.94	0.035	0	USL 2	1200
K03-510100080	5F	80	1.65	1.02	0.038	0	USL 2	1200
K03-510100100	5F	100	1.65	1.02	0.038	0	USL 2	1200
K03-410200065	4F	65	1.35	0.94	0.035	0	VER 135 °	1200
K03-410200100	4F	100	1.35	0.94	0.035	0	VER 135 °	1200
K03-410200125	4F	125	1.35	0.94	0.035	0	VER 135 °	1200
K03-510200065	5F	65	1.65	1.02	0.038	0	VER 135 °	1200
K03-510200100	5F	100	1.65	1.02	0.038	0	VER 135 °	1200
K03-510200125	5F	125	1.65	1.02	0.038	0	VER 135 °	1200
K03-410300100	4F	100	1.35	0.94	0.035	0	XB 3	1200
K03-510300100	5F	100	1.65	1.02	0.038	0	XB 3	1200
K03-410400100	4F	100	1.35	0.94	0.035	0	XB 3.5	1200
K03-510400100	5F	100	1.65	1.02	0.038	0	XB 3.5	1200
K03-610400100	6F	100	2	1.35	0.038	0	XB 3.5	1200
K03-510500125	5F	125	1.65	1.02	0.038	0	XB 4	1200
K03-610500100	6F	100	2	1.35	0.038	0	XB 4	1200

Precision at Every Step

Advancing Health for Humanity

Together, Build What's Next

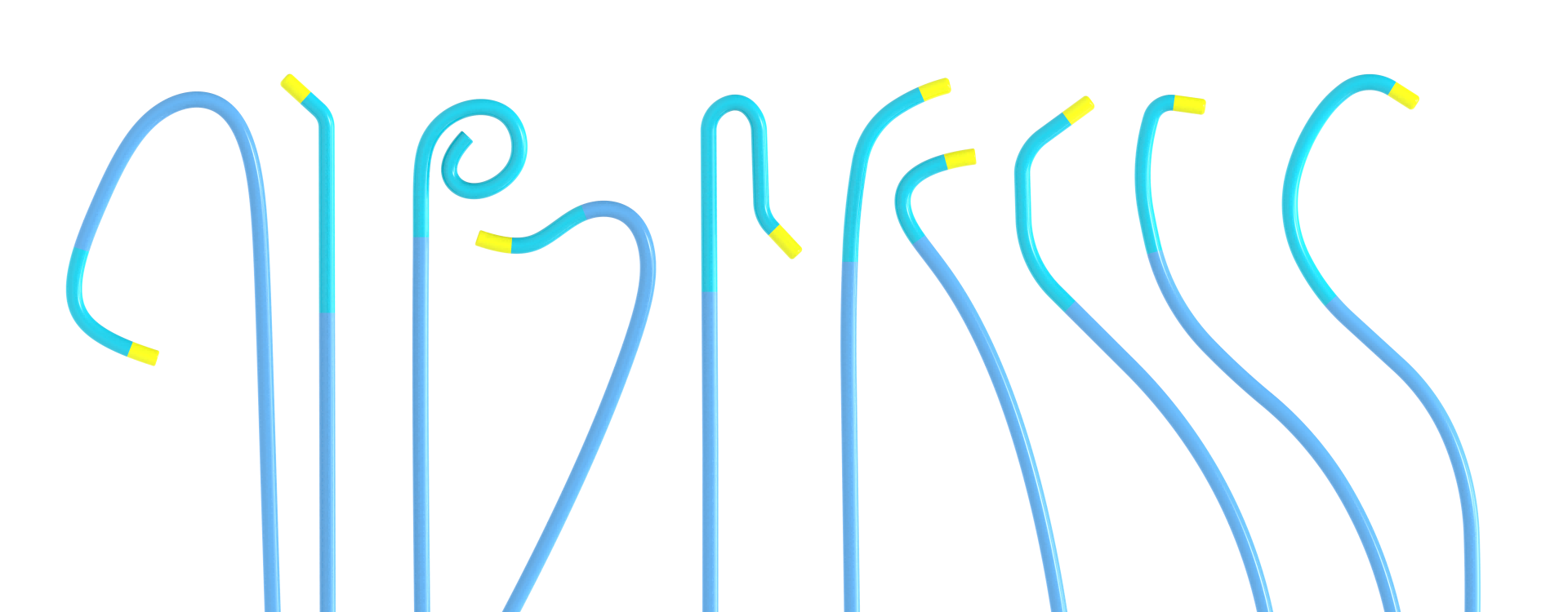

Arcleo™ Trace Diagnostic Catheter

Product Features

Soft Atraumatic Tip

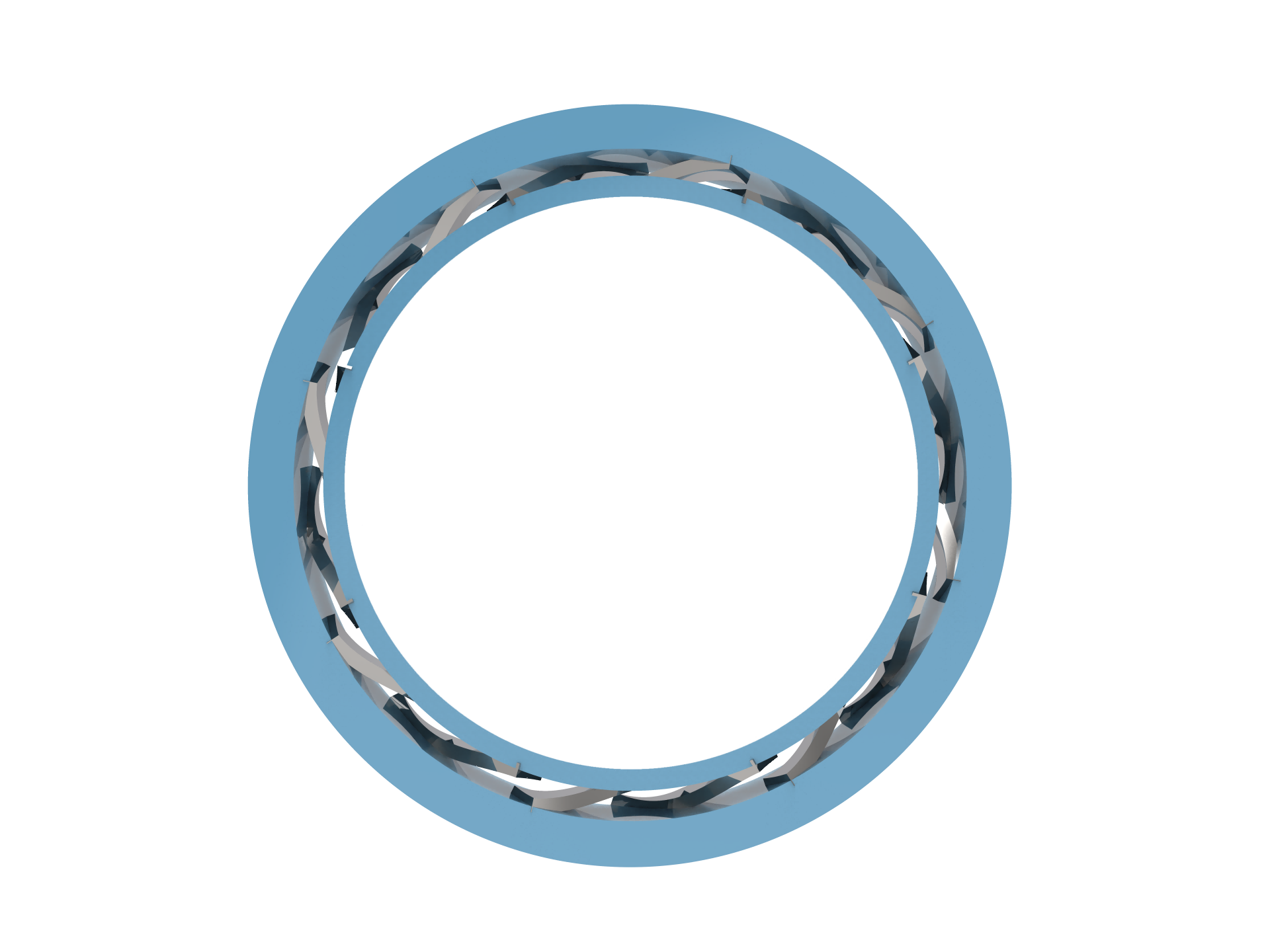

High Pressure Resistance

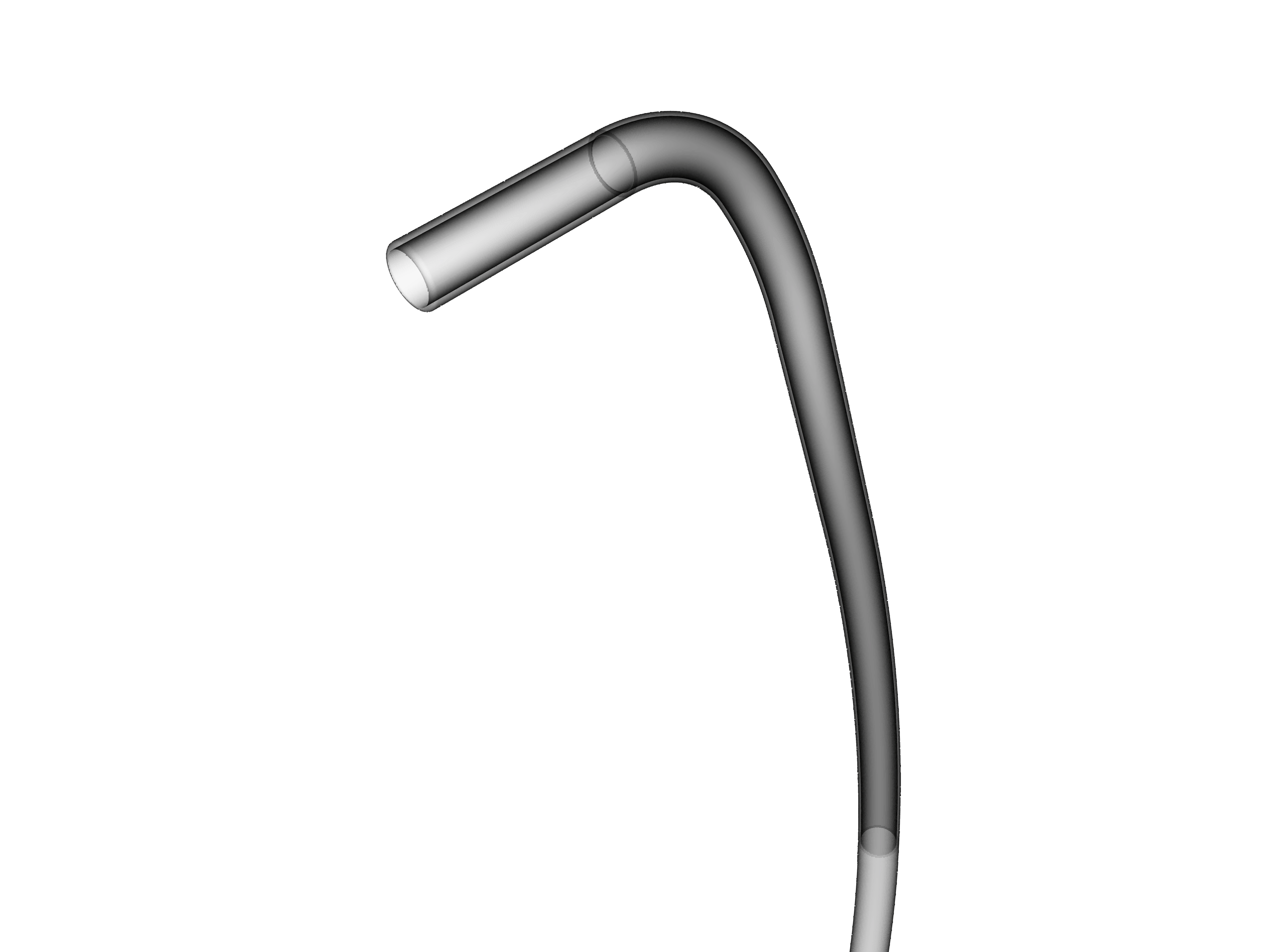

Excellent Radiopacity

Product Specifications

Stevra™ Select Guiding Catheter

Precision at Every Step

Advancing Health for Humanity

Together, Build What's Next

Arcleo™ Trace Diagnostic Catheter

Product Features

Soft Atraumatic Tip

High Pressure Resistance

Excellent Radiopacity

Product Specifications

Related Products

Stevra™ Select Guiding Catheter
