| Code↕ | Balloon Diameter (mm)↕ | Balloon Length (mm)↕ | Catheter Length (cm)↕ | NP (atm)↕ | RBP (atm)↕ |
|---|---|---|---|---|---|
| K19-03020S | 3 | 20 | 40 | 10 | 24 |
| K19-03030S | 3 | 30 | 40 | 10 | 24 |
| K19-03040S | 3 | 40 | 40 | 10 | 24 |
| K19-03060S | 3 | 60 | 40 | 10 | 24 |
| K19-03080S | 3 | 80 | 40 | 10 | 24 |
| K19-03100S | 3 | 100 | 40 | 10 | 24 |
| K19-04020S | 4 | 20 | 40 | 10 | 24 |
| K19-04030S | 4 | 30 | 40 | 10 | 24 |
| K19-04040S | 4 | 40 | 40 | 10 | 24 |
| K19-04060S | 4 | 60 | 40 | 10 | 24 |
| K19-04080S | 4 | 80 | 40 | 10 | 24 |
| K19-04100S | 4 | 100 | 40 | 10 | 24 |
| K19-05020S | 5 | 20 | 40 | 10 | 24 |
| K19-05030S | 5 | 30 | 40 | 10 | 24 |
| K19-05040S | 5 | 40 | 40 | 10 | 24 |
| K19-05060S | 5 | 60 | 40 | 10 | 24 |
| K19-05080S | 5 | 80 | 40 | 10 | 24 |
| K19-05100S | 5 | 100 | 40 | 10 | 24 |
| K19-05120S | 5 | 120 | 40 | 10 | 24 |
| K19-06020S | 6 | 20 | 40 | 10 | 24 |
| K19-06030S | 6 | 30 | 40 | 10 | 24 |
| K19-06040S | 6 | 40 | 40 | 10 | 24 |
| K19-06060S | 6 | 60 | 40 | 10 | 24 |
| K19-06080S | 6 | 80 | 40 | 10 | 24 |
| K19-06100S | 6 | 100 | 40 | 10 | 24 |
| K19-06120S | 6 | 120 | 40 | 10 | 22 |
| K19-07020S | 7 | 20 | 40 | 10 | 20 |
| K19-07030S | 7 | 30 | 40 | 10 | 20 |
| K19-07040S | 7 | 40 | 40 | 10 | 20 |
| K19-07060S | 7 | 60 | 40 | 10 | 20 |
| K19-07080S | 7 | 80 | 40 | 10 | 20 |
| K19-07100S | 7 | 100 | 40 | 10 | 20 |
| K19-08020S | 8 | 20 | 40 | 10 | 20 |
| K19-08030S | 8 | 30 | 40 | 10 | 20 |
| K19-08040S | 8 | 40 | 40 | 10 | 20 |
| K19-08060S | 8 | 60 | 40 | 10 | 20 |
| K19-08080S | 8 | 80 | 40 | 10 | 20 |
| K19-08100S | 8 | 100 | 40 | 10 | 20 |
| K19-09020S | 9 | 20 | 40 | 10 | 18 |
| K19-09030S | 9 | 30 | 40 | 10 | 18 |
| K19-09040S | 9 | 40 | 40 | 10 | 18 |
| K19-09060S | 9 | 60 | 40 | 10 | 18 |
| K19-09080S | 9 | 80 | 40 | 10 | 18 |
| K19- 10020S | 10 | 20 | 40 | 10 | 14 |
| K19- 10030S | 10 | 30 | 40 | 10 | 14 |
| K19- 10040S | 10 | 40 | 40 | 10 | 14 |
| K19- 10060S | 10 | 60 | 40 | 10 | 14 |
| K19- 10080S | 10 | 80 | 40 | 10 | 14 |
| K19- 12020S | 12 | 20 | 40 | 10 | 14 |
| K19- 12030S | 12 | 30 | 40 | 10 | 14 |
| K19- 12040S | 12 | 40 | 40 | 10 | 14 |
| K19- 12060S | 12 | 60 | 40 | 10 | 14 |
| K19- 12080S | 12 | 80 | 40 | 10 | 14 |
| K19-03020M | 3 | 20 | 75 | 10 | 24 |
| K19-03030M | 3 | 30 | 75 | 10 | 24 |
| K19-03040M | 3 | 40 | 75 | 10 | 24 |
| K19-03060M | 3 | 60 | 75 | 10 | 24 |
| K19-03080M | 3 | 80 | 75 | 10 | 24 |
| K19-03100M | 3 | 100 | 75 | 10 | 24 |
| K19-03120M | 3 | 120 | 75 | 10 | 24 |
| K19-03150M | 3 | 150 | 75 | 10 | 24 |
| K19-03180M | 3 | 180 | 75 | 10 | 24 |
| K19-03200M | 3 | 200 | 75 | 10 | 24 |
| K19-04020M | 4 | 20 | 75 | 10 | 24 |
| K19-04030M | 4 | 30 | 75 | 10 | 24 |
| K19-04040M | 4 | 40 | 75 | 10 | 24 |
| K19-04060M | 4 | 60 | 75 | 10 | 24 |
| K19-04080M | 4 | 80 | 75 | 10 | 24 |
| K19-04100M | 4 | 100 | 75 | 10 | 24 |
| K19-04120M | 4 | 120 | 75 | 10 | 24 |
| K19-04150M | 4 | 150 | 75 | 10 | 24 |
| K19-04180M | 4 | 180 | 75 | 10 | 24 |
| K19-04200M | 4 | 200 | 75 | 10 | 24 |
| K19-05020M | 5 | 20 | 75 | 10 | 24 |
| K19-05030M | 5 | 30 | 75 | 10 | 24 |
| K19-05040M | 5 | 40 | 75 | 10 | 24 |
| K19-05060M | 5 | 60 | 75 | 10 | 24 |
| K19-05080M | 5 | 80 | 75 | 10 | 24 |
| K19-05100M | 5 | 100 | 75 | 10 | 24 |
| K19-05120M | 5 | 120 | 75 | 10 | 24 |
| K19-05150M | 5 | 150 | 75 | 10 | 24 |
| K19-05180M | 5 | 180 | 75 | 10 | 24 |
| K19-05200M | 5 | 200 | 75 | 10 | 24 |
| K19-06020M | 6 | 20 | 75 | 10 | 24 |
| K19-06030M | 6 | 30 | 75 | 10 | 24 |
| K19-06040M | 6 | 40 | 75 | 10 | 24 |
| K19-06060M | 6 | 60 | 75 | 10 | 24 |
| K19-06080M | 6 | 80 | 75 | 10 | 24 |
| K19-06100M | 6 | 100 | 75 | 10 | 24 |
| K19-06120M | 6 | 120 | 75 | 10 | 22 |
| K19-06150M | 6 | 150 | 75 | 10 | 22 |
| K19-06180M | 6 | 180 | 75 | 10 | 22 |
| K19-06200M | 6 | 200 | 75 | 10 | 22 |
| K19-07020M | 7 | 20 | 75 | 10 | 20 |
| K19-07030M | 7 | 30 | 75 | 10 | 20 |
| K19-07040M | 7 | 40 | 75 | 10 | 20 |
| K19-07060M | 7 | 60 | 75 | 10 | 20 |
| K19-07080M | 7 | 80 | 75 | 10 | 20 |
| K19-07100M | 7 | 100 | 75 | 10 | 20 |
| K19-07120M | 7 | 120 | 75 | 10 | 18 |
| K19-07150M | 7 | 150 | 75 | 10 | 18 |
| K19-07180M | 7 | 180 | 75 | 10 | 18 |
| K19-07200M | 7 | 200 | 75 | 10 | 18 |
| K19-08020M | 8 | 20 | 75 | 10 | 20 |
| K19-08030M | 8 | 30 | 75 | 10 | 20 |
| K19-08040M | 8 | 40 | 75 | 10 | 20 |
| K19-08060M | 8 | 60 | 75 | 10 | 20 |
| K19-08080M | 8 | 80 | 75 | 10 | 20 |
| K19-08100M | 8 | 100 | 75 | 10 | 20 |
| K19-08120M | 8 | 120 | 75 | 10 | 18 |
| K19-08150M | 8 | 150 | 75 | 10 | 18 |
| K19-08180M | 8 | 180 | 75 | 10 | 18 |
| K19-08200M | 8 | 200 | 75 | 10 | 18 |
| K19-09020M | 9 | 20 | 75 | 10 | 18 |
| K19-09030M | 9 | 30 | 75 | 10 | 18 |
| K19-09040M | 9 | 40 | 75 | 10 | 18 |
| K19-09060M | 9 | 60 | 75 | 10 | 18 |
| K19-09080M | 9 | 80 | 75 | 10 | 18 |
| K19- 10020M | 10 | 20 | 75 | 10 | 14 |
| K19- 10030M | 10 | 30 | 75 | 10 | 14 |
| K19- 10040M | 10 | 40 | 75 | 10 | 14 |
| K19- 10060M | 10 | 60 | 75 | 10 | 14 |
| K19- 10080M | 10 | 80 | 75 | 10 | 14 |
| K19- 12020M | 12 | 20 | 75 | 10 | 14 |
| K19- 12030M | 12 | 30 | 75 | 10 | 14 |
| K19- 12040M | 12 | 40 | 75 | 10 | 14 |
| K19- 12060M | 12 | 60 | 75 | 10 | 14 |
| K19- 12080M | 12 | 80 | 75 | 10 | 14 |
| K19-03020L | 3 | 20 | 135 | 10 | 24 |
| K19-03030L | 3 | 30 | 135 | 10 | 24 |
| K19-03040L | 3 | 40 | 135 | 10 | 24 |
| K19-03060L | 3 | 60 | 135 | 10 | 24 |
| K19-03080L | 3 | 80 | 135 | 10 | 24 |
| K19-03100L | 3 | 100 | 135 | 10 | 24 |
| K19-03120L | 3 | 120 | 135 | 10 | 24 |
| K19-03150L | 3 | 150 | 135 | 10 | 24 |
| K19-03180L | 3 | 180 | 135 | 10 | 24 |
| K19-03200L | 3 | 200 | 135 | 10 | 24 |
| K19-04020L | 4 | 20 | 135 | 10 | 24 |
| K19-04030L | 4 | 30 | 135 | 10 | 24 |
| K19-04040L | 4 | 40 | 135 | 10 | 24 |
| K19-04060L | 4 | 60 | 135 | 10 | 24 |
| K19-04080L | 4 | 80 | 135 | 10 | 24 |
| K19-04100L | 4 | 100 | 135 | 10 | 24 |
| K19-04120L | 4 | 120 | 135 | 10 | 24 |
| K19-04150L | 4 | 150 | 135 | 10 | 24 |
| K19-04180L | 4 | 180 | 135 | 10 | 24 |
| K19-04200L | 4 | 200 | 135 | 10 | 24 |
| K19-05020L | 5 | 20 | 135 | 10 | 24 |
| K19-05030L | 5 | 30 | 135 | 10 | 24 |
| K19-05040L | 5 | 40 | 135 | 10 | 24 |
| K19-05060L | 5 | 60 | 135 | 10 | 24 |
| K19-05080L | 5 | 80 | 135 | 10 | 24 |
| K19-05100L | 5 | 100 | 135 | 10 | 24 |
| K19-05120L | 5 | 120 | 135 | 10 | 24 |
| K19-05150L | 5 | 150 | 135 | 10 | 24 |
| K19-05180L | 5 | 180 | 135 | 10 | 24 |
| K19-05200L | 5 | 200 | 135 | 10 | 24 |
| K19-06020L | 6 | 20 | 135 | 10 | 24 |
| K19-06030L | 6 | 30 | 135 | 10 | 24 |
| K19-06040L | 6 | 40 | 135 | 10 | 24 |
| K19-06060L | 6 | 60 | 135 | 10 | 24 |
| K19-06080L | 6 | 80 | 135 | 10 | 24 |
| K19-06100L | 6 | 100 | 135 | 10 | 24 |
| K19-06120L | 6 | 120 | 135 | 10 | 22 |
| K19-06150L | 6 | 150 | 135 | 10 | 22 |
| K19-06180L | 6 | 180 | 135 | 10 | 22 |
| K19-06200L | 6 | 200 | 135 | 10 | 22 |
| K19-07020L | 7 | 20 | 135 | 10 | 20 |
| K19-07030L | 7 | 30 | 135 | 10 | 20 |
| K19-07040L | 7 | 40 | 135 | 10 | 20 |
| K19-07060L | 7 | 60 | 135 | 10 | 20 |
| K19-07080L | 7 | 80 | 135 | 10 | 20 |
| K19-07100L | 7 | 100 | 135 | 10 | 20 |
| K19-07120L | 7 | 120 | 135 | 10 | 18 |
| K19-07150L | 7 | 150 | 135 | 10 | 18 |
| K19-07180L | 7 | 180 | 135 | 10 | 18 |
| K19-07200L | 7 | 200 | 135 | 10 | 18 |
| K19-08020L | 8 | 20 | 135 | 10 | 20 |
| K19-08030L | 8 | 30 | 135 | 10 | 20 |
| K19-08040L | 8 | 40 | 135 | 10 | 20 |
| K19-08060L | 8 | 60 | 135 | 10 | 20 |
| K19-08080L | 8 | 80 | 135 | 10 | 20 |
| K19-08100L | 8 | 100 | 135 | 10 | 20 |
| K19-08120L | 8 | 120 | 135 | 10 | 18 |
| K19-08150L | 8 | 150 | 135 | 10 | 18 |
| K19-08180L | 8 | 180 | 135 | 10 | 18 |
| K19-08200L | 8 | 200 | 135 | 10 | 18 |
| K19-09020L | 9 | 20 | 135 | 10 | 18 |
| K19-09030L | 9 | 30 | 135 | 10 | 18 |
| K19-09040L | 9 | 40 | 135 | 10 | 18 |
| K19-09060L | 9 | 60 | 135 | 10 | 18 |
| K19-09080L | 9 | 80 | 135 | 10 | 18 |
| K19- 10020L | 10 | 20 | 135 | 10 | 14 |
| K19- 10030L | 10 | 30 | 135 | 10 | 14 |
| K19- 10040L | 10 | 40 | 135 | 10 | 14 |
| K19- 10060L | 10 | 60 | 135 | 10 | 14 |
| K19- 10080L | 10 | 80 | 135 | 10 | 14 |
| K19- 12020L | 12 | 20 | 135 | 10 | 14 |
| K19- 12030L | 12 | 30 | 135 | 10 | 14 |
| K19- 12040L | 12 | 40 | 135 | 10 | 14 |
| K19- 12060L | 12 | 60 | 135 | 10 | 14 |
| K19- 12080L | 12 | 80 | 135 | 10 | 14 |

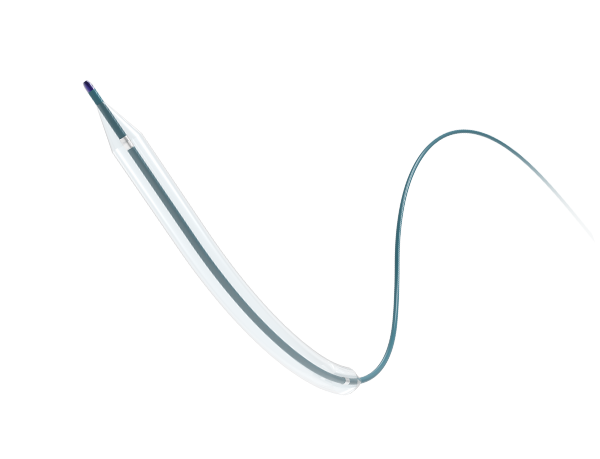

Ziloon™ NC Balloon Dilatation Catheter
The Ziloon™ NC Balloon Dilatation Catheter optimizes peripheral intervention with an elite balance of high pressure tolerance, low entry profile, and exceptional multi-inflation rewrap performance.
Product Features

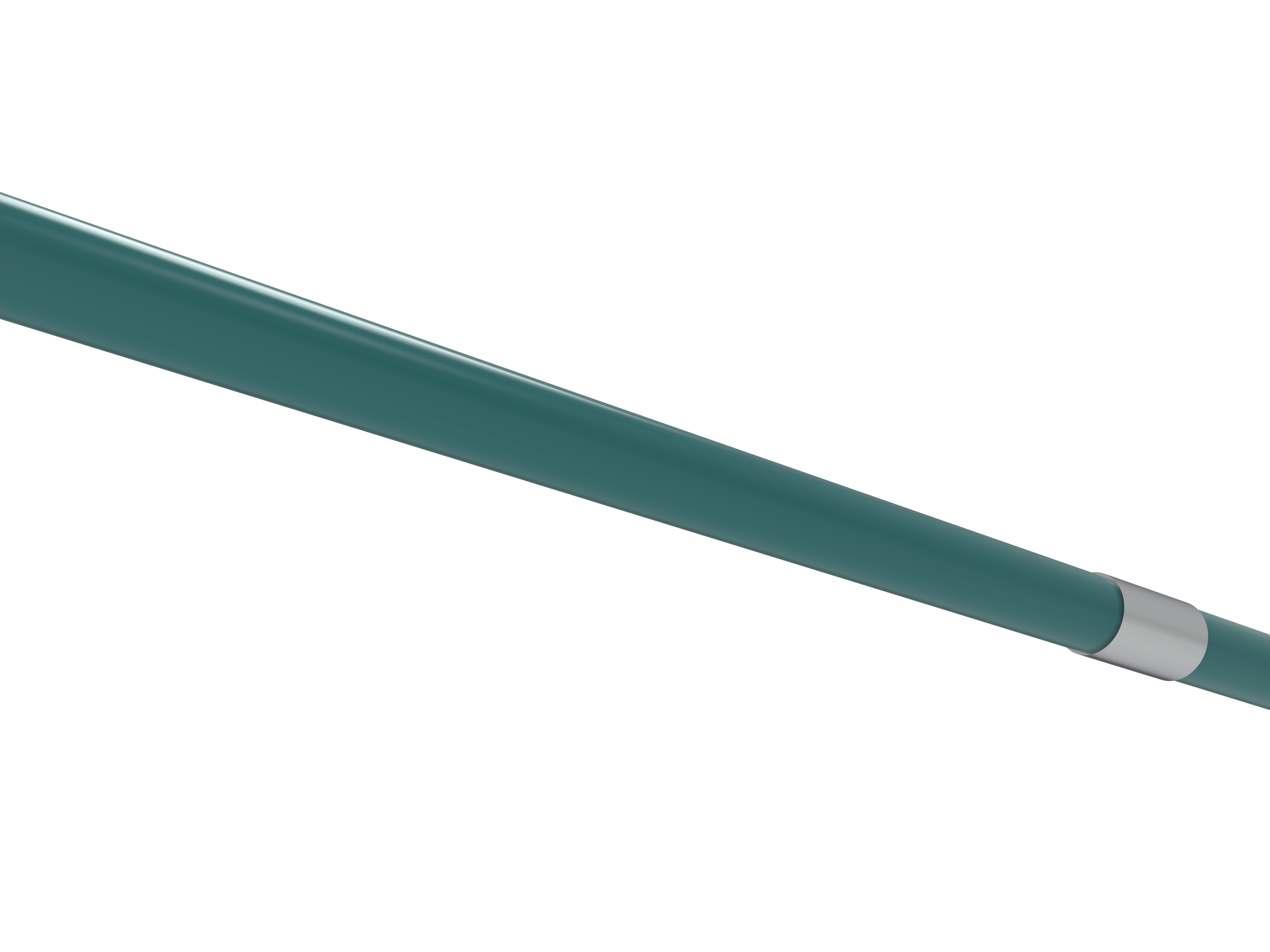

Coated Catheter Shaft
The shaft coating reduces friction and enhances crossability through challenging anatomy.

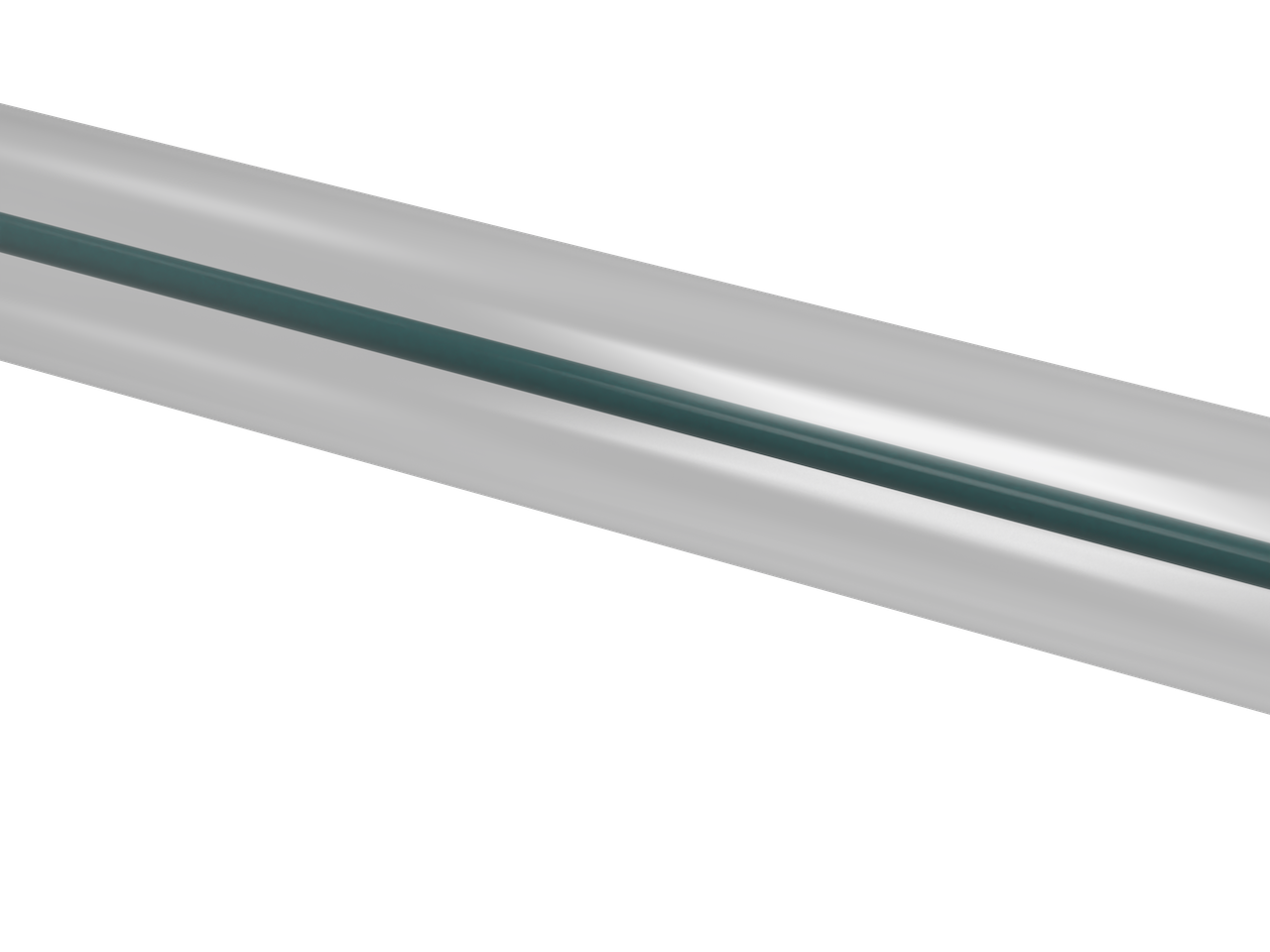

High Rated Burst Pressure
The high-pressure-resistant design provides a reliable inflation range for controlled lesion dilatation.

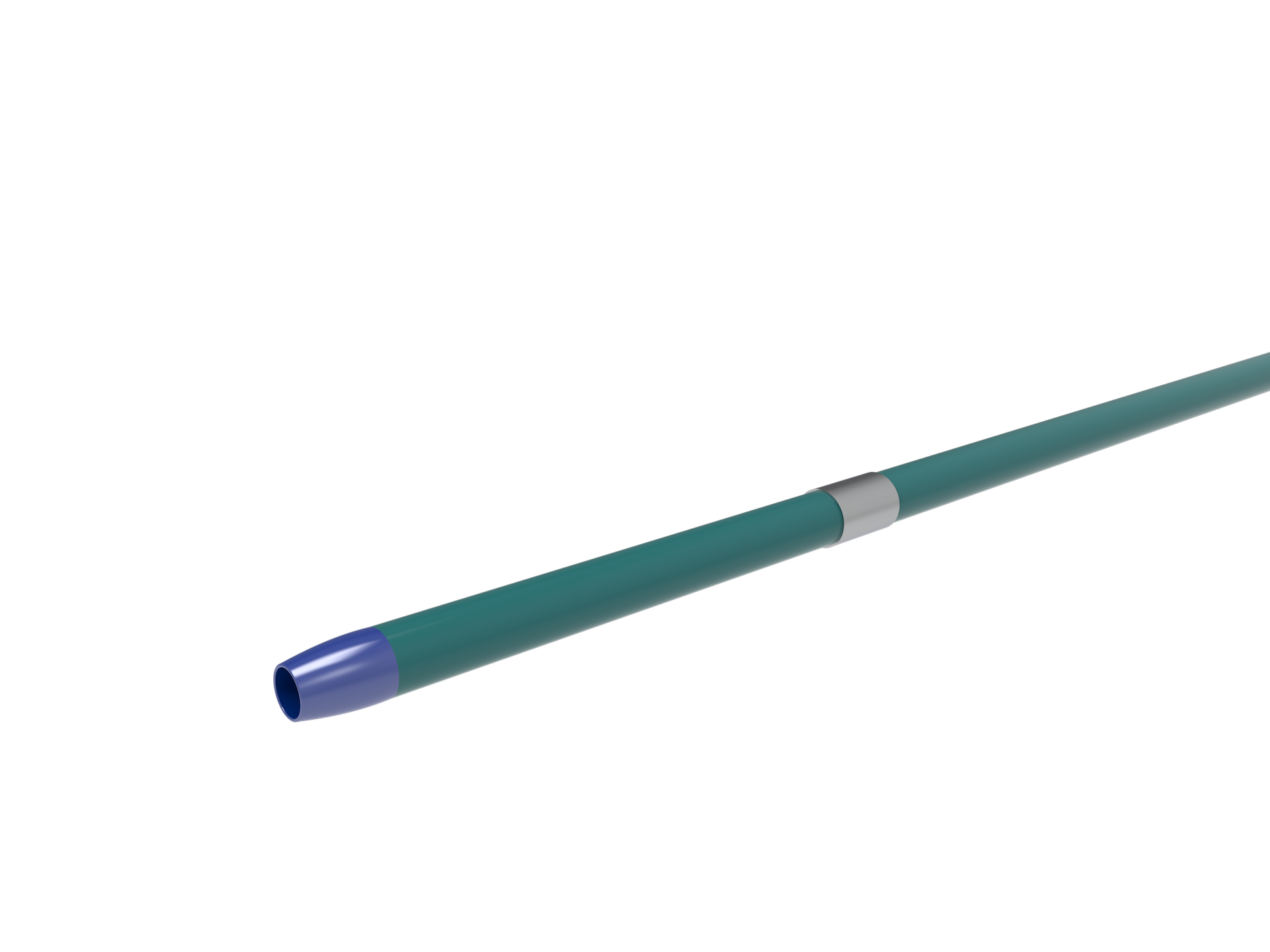

Flexible Tapered Tip
The flexible tapered tip facilitates smooth entry and navigation through complex lesions.

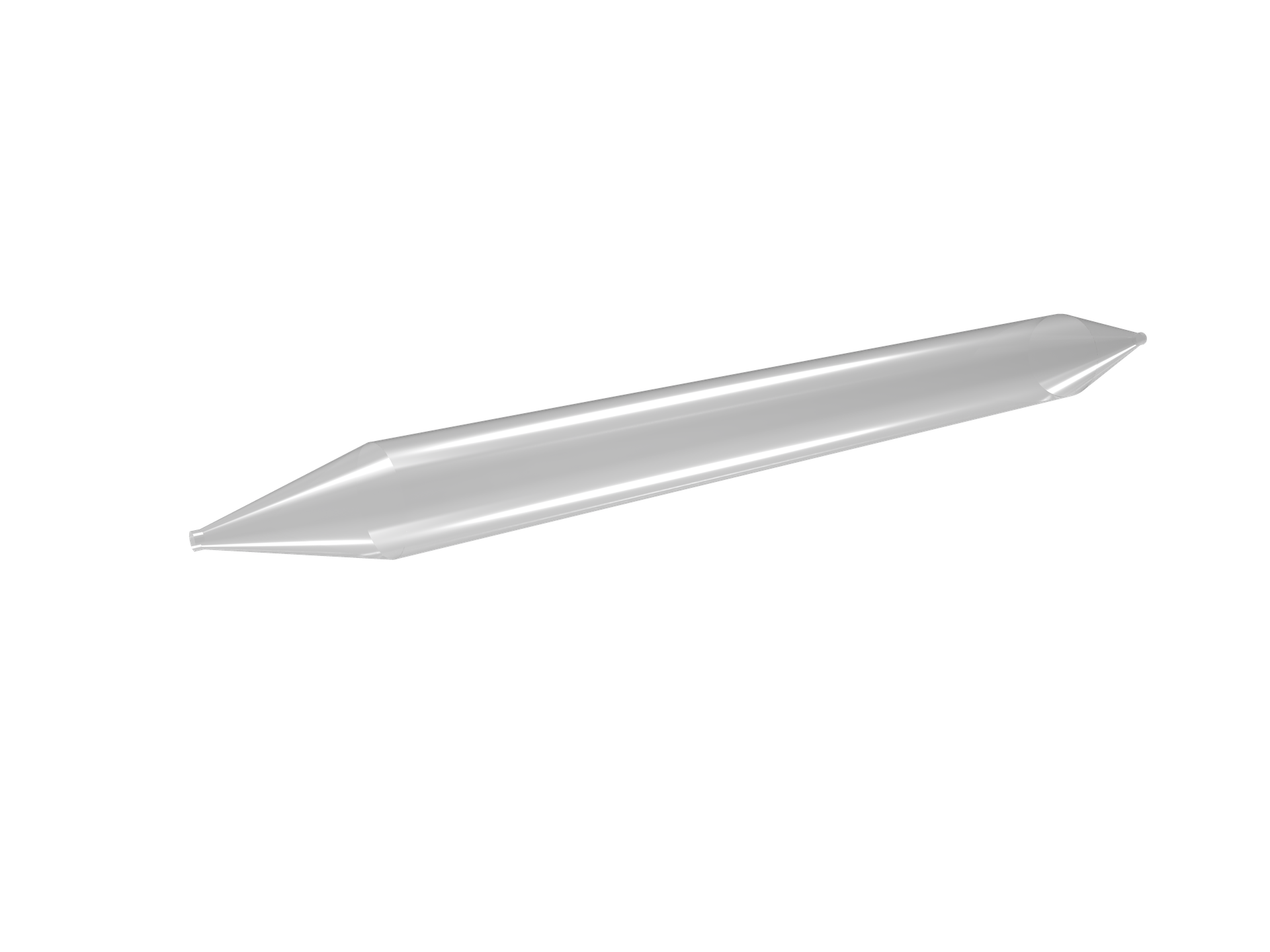

Non-Compliant Balloon
Provides controlled, precise expansion for the dilatation of challenging calcified lesions.
