| Code↕ | Balloon Diameter (mm)↕ | Balloon Length (mm)↕ | Catheter Length (mm)↕ | NP (atm)↕ | RBP (atm)↕ |
|---|---|---|---|---|---|
| K33 - 1006 | 1 | 6 | 1430 | 6 | 14 |
| K33 - 1009 | 1 | 9 | 1430 | 6 | 14 |
| K33 - 1012 | 1 | 12 | 1430 | 6 | 14 |
| K33 - 1015 | 1 | 15 | 1430 | 6 | 14 |
| K33 - 1206 | 1.25 | 6 | 1430 | 6 | 14 |
| K33 - 1209 | 1.25 | 9 | 1430 | 6 | 14 |
| K33 - 1212 | 1.25 | 12 | 1430 | 6 | 14 |
| K33 - 1215 | 1.25 | 15 | 1430 | 6 | 14 |
| K33 - 1506 | 1.5 | 6 | 1430 | 6 | 14 |
| K33 - 1509 | 1.5 | 9 | 1430 | 6 | 14 |
| K33 - 1512 | 1.5 | 12 | 1430 | 6 | 14 |
| K33 - 1515 | 1.5 | 15 | 1430 | 6 | 14 |
| K33 -2006 | 2 | 6 | 1430 | 6 | 14 |
| K33 -2009 | 2 | 9 | 1430 | 6 | 14 |
| K33 -2012 | 2 | 12 | 1430 | 6 | 14 |
| K33 -2015 | 2 | 15 | 1430 | 6 | 14 |
| K33 -2020 | 2 | 20 | 1430 | 6 | 14 |
| K33 -2025 | 2 | 25 | 1430 | 6 | 14 |
| K33 -2030 | 2 | 30 | 1430 | 6 | 14 |
| K33 -2040 | 2 | 40 | 1430 | 6 | 14 |
| K33 -2206 | 2.25 | 6 | 1430 | 6 | 14 |
| K33 -2209 | 2.25 | 9 | 1430 | 6 | 14 |
| K33 -2212 | 2.25 | 12 | 1430 | 6 | 14 |
| K33 -2215 | 2.25 | 15 | 1430 | 6 | 14 |
| K33 -2220 | 2.25 | 20 | 1430 | 6 | 14 |
| K33 -2225 | 2.25 | 25 | 1430 | 6 | 14 |
| K33 -2230 | 2.25 | 30 | 1430 | 6 | 14 |
| K33 -2240 | 2.25 | 40 | 1430 | 6 | 14 |
| K33 -2506 | 2.5 | 6 | 1430 | 6 | 14 |
| K33 -2509 | 2.5 | 9 | 1430 | 6 | 14 |
| K33 -2512 | 2.5 | 12 | 1430 | 6 | 14 |
| K33 -2515 | 2.5 | 15 | 1430 | 6 | 14 |
| K33 -2520 | 2.5 | 20 | 1430 | 6 | 14 |
| K33 -2525 | 2.5 | 25 | 1430 | 6 | 14 |
| K33 -2530 | 2.5 | 30 | 1430 | 6 | 14 |
| K33 -2540 | 2.5 | 40 | 1430 | 6 | 14 |
| K33 -2706 | 2.75 | 6 | 1430 | 6 | 14 |
| K33 -2709 | 2.75 | 9 | 1430 | 6 | 14 |
| K33 -2712 | 2.75 | 12 | 1430 | 6 | 14 |
| K33 -2715 | 2.75 | 15 | 1430 | 6 | 14 |
| K33 -2720 | 2.75 | 20 | 1430 | 6 | 14 |
| K33 -2725 | 2.75 | 25 | 1430 | 6 | 14 |
| K33 -2730 | 2.75 | 30 | 1430 | 6 | 14 |
| K33 -2740 | 2.75 | 40 | 1430 | 6 | 14 |
| K33 -3006 | 3 | 6 | 1430 | 6 | 14 |
| K33 -3009 | 3 | 9 | 1430 | 6 | 14 |
| K33 -3012 | 3 | 12 | 1430 | 6 | 14 |
| K33 -3015 | 3 | 15 | 1430 | 6 | 14 |
| K33 -3020 | 3 | 20 | 1430 | 6 | 14 |
| K33 -3025 | 3 | 25 | 1430 | 6 | 14 |
| K33 -3030 | 3 | 30 | 1430 | 6 | 14 |
| K33 -3040 | 3 | 40 | 1430 | 6 | 14 |
| K33 -3206 | 3.25 | 6 | 1430 | 6 | 14 |
| K33 -3209 | 3.25 | 9 | 1430 | 6 | 14 |
| K33 -3212 | 3.25 | 12 | 1430 | 6 | 14 |
| K33 -3215 | 3.25 | 15 | 1430 | 6 | 14 |
| K33 -3220 | 3.25 | 20 | 1430 | 6 | 14 |
| K33 -3225 | 3.25 | 25 | 1430 | 6 | 14 |
| K33 -3230 | 3.25 | 30 | 1430 | 6 | 14 |
| K33 -3240 | 3.25 | 40 | 1430 | 6 | 14 |
| K33 -3506 | 3.5 | 6 | 1430 | 6 | 12 |
| K33 -3509 | 3.5 | 9 | 1430 | 6 | 12 |
| K33 -3512 | 3.5 | 12 | 1430 | 6 | 12 |
| K33 -3515 | 3.5 | 15 | 1430 | 6 | 12 |
| K33 -3520 | 3.5 | 20 | 1430 | 6 | 12 |
| K33 -3525 | 3.5 | 25 | 1430 | 6 | 12 |
| K33 -3530 | 3.5 | 30 | 1430 | 6 | 12 |
| K33 -3540 | 3.5 | 40 | 1430 | 6 | 12 |
| K33 -3706 | 3.75 | 6 | 1430 | 6 | 12 |
| K33 -3709 | 3.75 | 9 | 1430 | 6 | 12 |
| K33 -3712 | 3.75 | 12 | 1430 | 6 | 12 |
| K33 -3715 | 3.75 | 15 | 1430 | 6 | 12 |
| K33 -3720 | 3.75 | 20 | 1430 | 6 | 12 |
| K33 -3725 | 3.75 | 25 | 1430 | 6 | 12 |
| K33 -3730 | 3.75 | 30 | 1430 | 6 | 12 |
| K33 -3740 | 3.75 | 40 | 1430 | 6 | 12 |
| K33 -4006 | 4 | 6 | 1430 | 6 | 12 |
| K33 -4009 | 4 | 9 | 1430 | 6 | 12 |
| K33 -4012 | 4 | 12 | 1430 | 6 | 12 |
| K33 -4015 | 4 | 15 | 1430 | 6 | 12 |
| K33 -4020 | 4 | 20 | 1430 | 6 | 12 |
| K33 -4025 | 4 | 25 | 1430 | 6 | 12 |
| K33 -4030 | 4 | 30 | 1430 | 6 | 12 |
| K33 -4040 | 4 | 40 | 1430 | 6 | 12 |
| K33 -4506 | 4.5 | 6 | 1430 | 6 | 12 |
| K33 -4509 | 4.5 | 9 | 1430 | 6 | 12 |
| K33 -4512 | 4.5 | 12 | 1430 | 6 | 12 |
| K33 -4515 | 4.5 | 15 | 1430 | 6 | 12 |
| K33 -4520 | 4.5 | 20 | 1430 | 6 | 12 |
| K33 -4525 | 4.5 | 25 | 1430 | 6 | 12 |
| K33 -4530 | 4.5 | 30 | 1430 | 6 | 12 |
| K33 -4540 | 4.5 | 40 | 1430 | 6 | 12 |
| K33 -5006 | 5 | 6 | 1430 | 6 | 12 |
| K33 -5009 | 5 | 9 | 1430 | 6 | 12 |
| K33 -5012 | 5 | 12 | 1430 | 6 | 12 |
| K33 -5015 | 5 | 15 | 1430 | 6 | 12 |
| K33 -5020 | 5 | 20 | 1430 | 6 | 12 |
| K33 -5025 | 5 | 25 | 1430 | 6 | 12 |
| K33 -5030 | 5 | 30 | 1430 | 6 | 12 |
| K33 -5040 | 5 | 40 | 1430 | 6 | 12 |

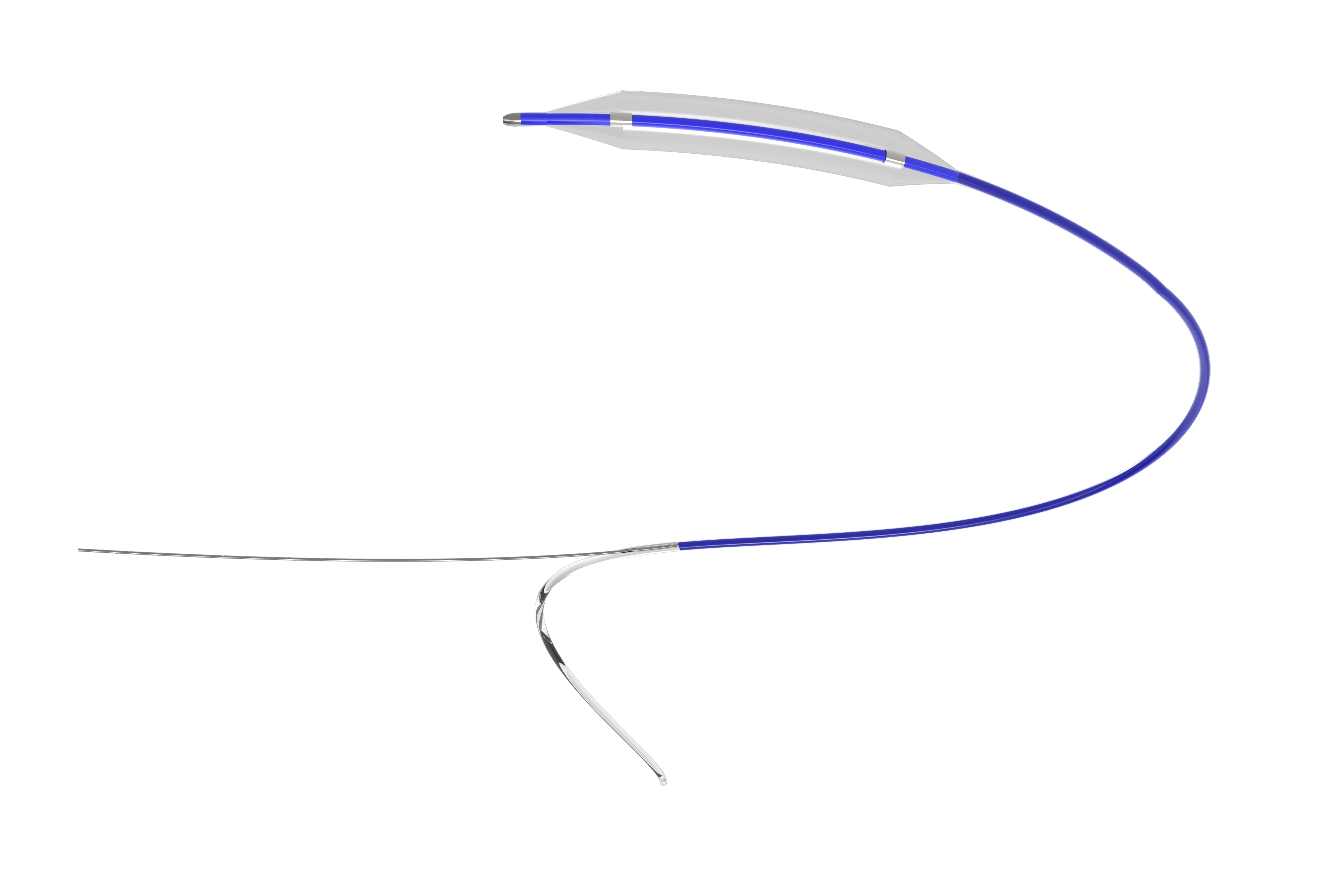

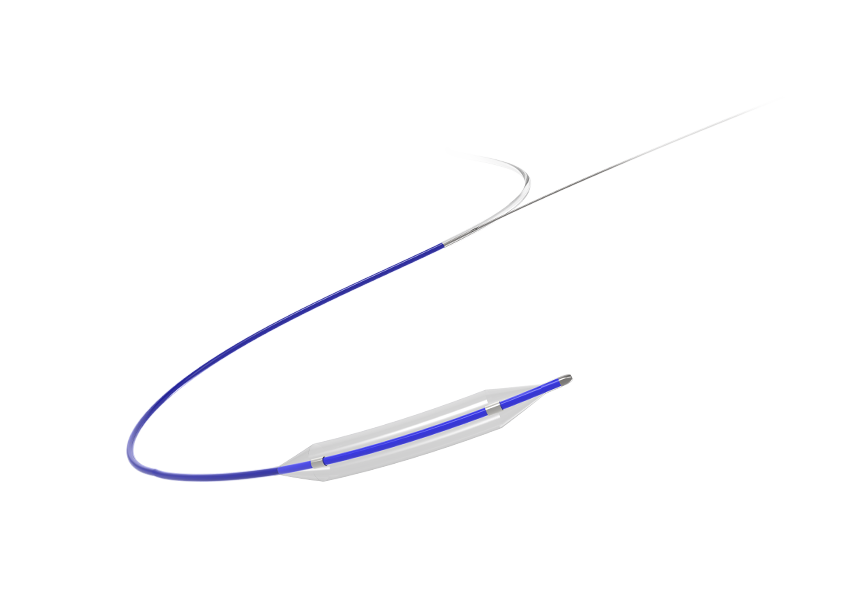

Novacor™ Balloon Dilatation Catheter
The Novacor™ Balloon Dilatation Catheter features a low-profile design for improved deliverability. It offers good trackability and consistent balloon performance during coronary angioplasty procedures.
Product Features

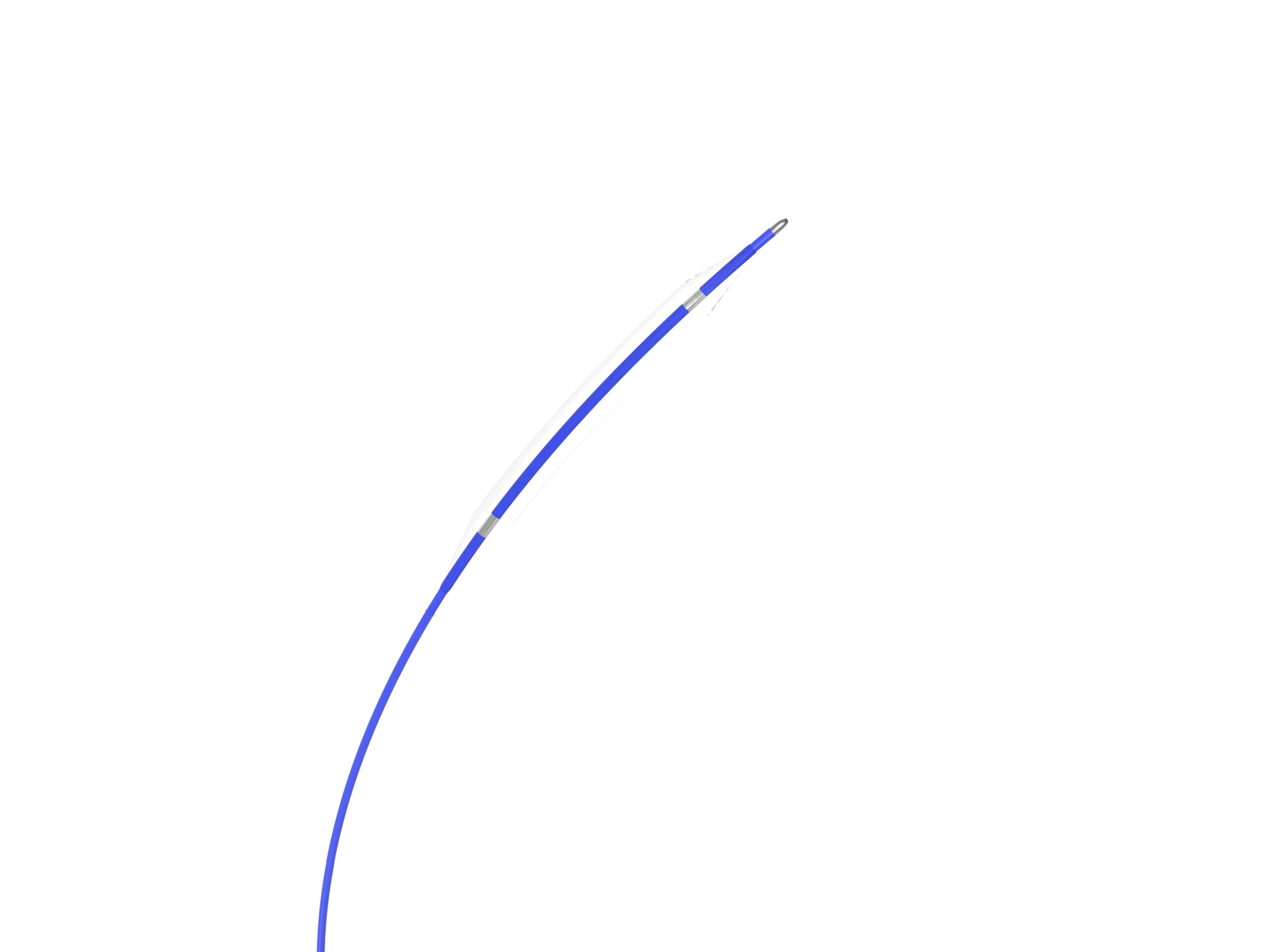

Excellent Crossability

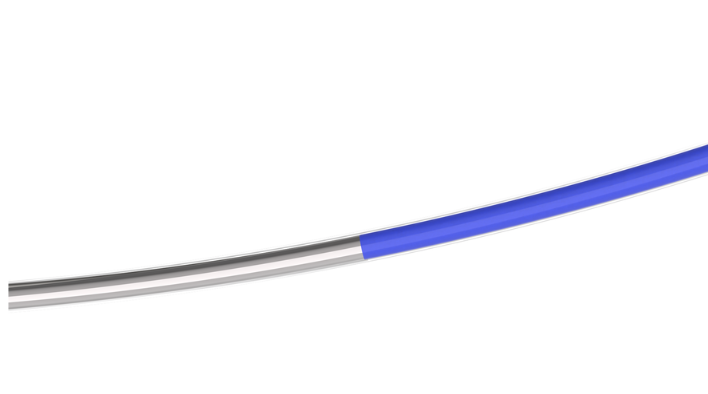

The hydrophilic coating reduces friction, facilitating smooth advancement through complex and tortuous anatomy.
Enhanced Trackability

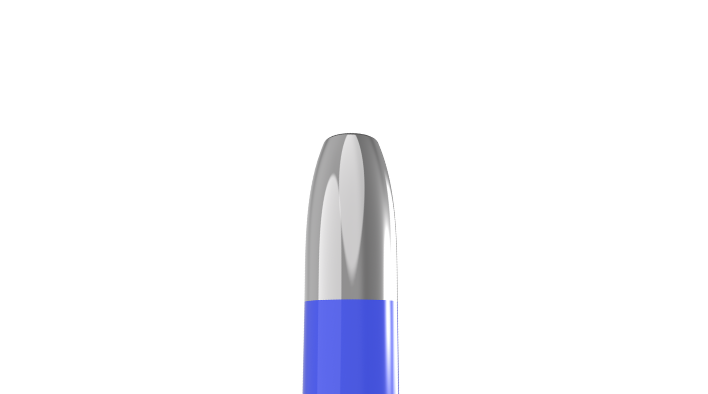

The laser-formed, rounded distal tip minimizes fish-mouthing and helps reduce the risk of vessel-wall trauma.
Comprehensive Size Range
A broad range of sizes accommodates various vessel diameters and lesion characteristics, supporting diverse clinical needs.

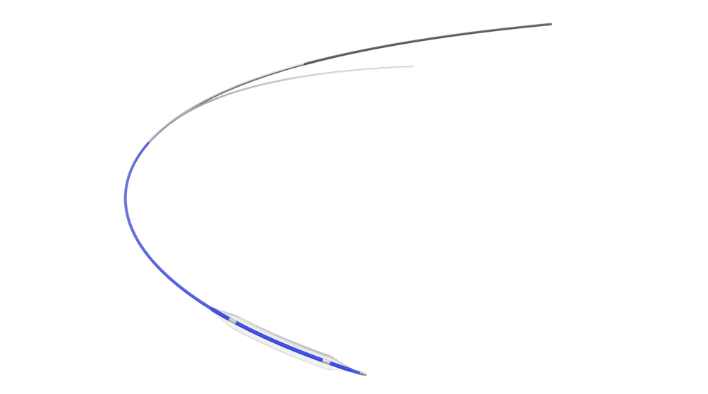

Reliable Rewrapping and Withdrawal
The multi-wing balloon-folding process reduces the crossing profile while providing reliable rewrapping performance and smooth withdrawal from the vessel.
