| Code↕ | Sheath Size (Fr)↕ | Sheath Length(mm)↕ | Dilator Length (mm)↕ | Guidewire Size (mm)↕ | GuidewireLength (mm)↕ | Guidewire Tip Shape↕ | Needle Diameter (mm)↕ | Needle Length (mm)↕ | Syringe (mL)↕ | Scalpel↕ |
|---|---|---|---|---|---|---|---|---|---|---|
| K02-A0405GPZ | 4 | 50 | 105 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0407GPZ | 4 | 70 | 125 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0410GPZ | 4 | 100 | 155 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0410KPZ | 4 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0416GPZ | 4 | 160 | 215 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0416KPZ | 4 | 160 | 215 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0425GPZ | 4 | 250 | 305 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0425KPZ | 4 | 250 | 305 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0405GLZ | 4 | 50 | 105 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0407GLZ | 4 | 70 | 125 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0410GLZ | 4 | 100 | 155 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0410KLZ | 4 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0416GLZ | 4 | 160 | 215 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0416KLZ | 4 | 160 | 215 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0425GLZ | 4 | 250 | 305 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0425KLZ | 4 | 250 | 305 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-B0405GP | 4 | 50 | 105 | 0.61 | 450 | P | / | / | / | / |
| K02-B0407GP | 4 | 70 | 125 | 0.61 | 450 | P | / | / | / | / |
| K02-B0410GP | 4 | 100 | 155 | 0.61 | 450 | P | / | / | / | / |
| K02-B0410KP | 4 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0416GP | 4 | 160 | 215 | 0.61 | 800 | P | / | / | / | / |
| K02-B0416KP | 4 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B0425GP | 4 | 250 | 305 | 0.61 | 800 | P | / | / | / | / |
| K02-B0425KP | 4 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0405GL | 4 | 50 | 105 | 0.61 | 450 | L | / | / | / | / |
| K02-B0407GL | 4 | 70 | 125 | 0.61 | 450 | L | / | / | / | / |
| K02-B0410GL | 4 | 100 | 155 | 0.61 | 450 | L | / | / | / | / |
| K02-B0410KL | 4 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0416GL | 4 | 160 | 215 | 0.61 | 800 | L | / | / | / | / |
| K02-B0416KL | 4 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-B0425GL | 4 | 250 | 305 | 0.61 | 800 | L | / | / | / | / |
| K02-B0425KL | 4 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-C0405GN | 4 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0407GN | 4 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0410GN | 4 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0410KN | 4 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0416GN | 4 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0416KN | 4 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0425GN | 4 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0425KN | 4 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A0505GPZ | 5 | 50 | 105 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0507GPZ | 5 | 70 | 125 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0510GPZ | 5 | 100 | 155 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0510KPZ | 5 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0516GPZ | 5 | 160 | 215 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0516KPZ | 5 | 160 | 215 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0525KPZ | 5 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0525HPZ | 5 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0505GLZ | 5 | 50 | 105 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0507GLZ | 5 | 70 | 125 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0510GLZ | 5 | 100 | 155 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0510KLZ | 5 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0516GLZ | 5 | 160 | 215 | 0.61 | 800 | L | 0.7 | 51 | 2 | + |
| K02-A0516KLZ | 5 | 160 | 215 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0525KLZ | 5 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0525HLZ | 5 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B0505GP | 5 | 50 | 105 | 0.61 | 450 | P | / | / | / | / |
| K02-B0507GP | 5 | 70 | 125 | 0.61 | 450 | P | / | / | / | / |
| K02-B0510GP | 5 | 100 | 155 | 0.61 | 450 | P | / | / | / | / |
| K02-B0510KP | 5 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0510HP | 5 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B0516GP | 5 | 160 | 215 | 0.61 | 800 | P | / | / | / | / |
| K02-B0516KP | 5 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B0525KP | 5 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0525HP | 5 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B0505GL | 5 | 50 | 105 | 0.61 | 450 | L | / | / | / | / |
| K02-B0507GL | 5 | 70 | 125 | 0.61 | 450 | L | / | / | / | / |
| K02-B0510GL | 5 | 100 | 155 | 0.61 | 450 | L | / | / | / | / |
| K02-B0510KL | 5 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0510HL | 5 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B0516GL | 5 | 160 | 215 | 0.61 | 800 | L | / | / | / | / |
| K02-B0516KL | 5 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-B0525KL | 5 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B0525HL | 5 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C0505GN | 5 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0507GN | 5 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0510GN | 5 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0510KN | 5 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0510HN | 5 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0516GN | 5 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0516KN | 5 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0525KN | 5 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0525HN | 5 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A5505GPZ | 5.5 | 50 | 105 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A5507GPZ | 5.5 | 70 | 125 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A5510GPZ | 5.5 | 100 | 155 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A5510KPZ | 5.5 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A5516GPZ | 5.5 | 160 | 215 | 0.61 | 800 | P | 0.7 | 51 | 2 | + |
| K02-A5516KPZ | 5.5 | 160 | 215 | 0.85 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A5505GLZ | 5.5 | 50 | 105 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A5507GLZ | 5.5 | 70 | 125 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A5510GLZ | 5.5 | 100 | 155 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A5510KLZ | 5.5 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A5516GLZ | 5.5 | 160 | 215 | 0.61 | 800 | L | 0.7 | 51 | 2 | + |
| K02-A5516KLZ | 5.5 | 160 | 215 | 0.85 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B5505GP | 5.5 | 50 | 105 | 0.61 | 450 | P | / | / | / | / |
| K02-B5507GP | 5.5 | 70 | 125 | 0.61 | 450 | P | / | / | / | / |
| K02-B5510GP | 5.5 | 100 | 155 | 0.61 | 450 | P | / | / | / | / |
| K02-B5510KP | 5.5 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B5516GP | 5.5 | 160 | 215 | 0.61 | 800 | P | / | / | / | / |
| K02-B5516KP | 5.5 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B5505GL | 5.5 | 50 | 105 | 0.61 | 450 | L | / | / | / | / |
| K02-B5507GL | 5.5 | 70 | 125 | 0.61 | 450 | L | / | / | / | / |
| K02-B5510GL | 5.5 | 100 | 155 | 0.61 | 450 | L | / | / | / | / |
| K02-B5510KL | 5.5 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B5516GL | 5.5 | 160 | 215 | 0.61 | 800 | L | / | / | / | / |
| K02-B5516KL | 5.5 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-C5505GN | 5.5 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C5507GN | 5.5 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C5510GN | 5.5 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C5510KN | 5.5 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C5516GN | 5.5 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C5516KN | 5.5 | 160 | 215 | / | / | / | / | / | / | / |
| K02-A0605GPZ | 6 | 50 | 105 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0605KPZ | 6 | 50 | 105 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0607GPZ | 6 | 70 | 125 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0607KPZ | 6 | 70 | 125 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0610GPZ | 6 | 100 | 155 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0610KPZ | 6 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0610HPZ | 6 | 100 | 155 | 0.94 | 450 | P | 1.15 | 83 | 2 | + |
| K02-A0616GPZ | 6 | 160 | 215 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0616KPZ | 6 | 160 | 215 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0616HPZ | 6 | 160 | 215 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0625GPZ | 6 | 250 | 305 | 0.61 | 800 | P | 0.7 | 51 | 2 | + |
| K02-A0625KPZ | 6 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0625HPZ | 6 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0605GLZ | 6 | 50 | 105 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0605KLZ | 6 | 50 | 105 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0607GLZ | 6 | 70 | 125 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0607KLZ | 6 | 70 | 125 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0610GLZ | 6 | 100 | 155 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0610KLZ | 6 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0610HLZ | 6 | 100 | 155 | 0.94 | 450 | L | 1.15 | 83 | 2 | + |
| K02-A0616GLZ | 6 | 160 | 215 | 0.61 | 800 | L | 0.7 | 51 | 2 | + |
| K02-A0616KLZ | 6 | 160 | 215 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0616HLZ | 6 | 160 | 215 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-A0625GLZ | 6 | 250 | 305 | 0.61 | 800 | L | 0.7 | 51 | 2 | + |
| K02-A0625KLZ | 6 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0625HLZ | 6 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B0605GP | 6 | 50 | 105 | 0.61 | 450 | P | / | / | / | / |
| K02-B0605KP | 6 | 50 | 105 | 0.85 | 450 | P | / | / | / | / |
| K02-B0607GP | 6 | 70 | 125 | 0.61 | 450 | P | / | / | / | / |
| K02-B0607KP | 6 | 70 | 125 | 0.85 | 450 | P | / | / | / | / |
| K02-B0610GP | 6 | 100 | 155 | 0.61 | 450 | P | / | / | / | / |
| K02-B0610KP | 6 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0610HP | 6 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B0616GP | 6 | 160 | 215 | 0.61 | 800 | P | / | / | / | / |
| K02-B0616KP | 6 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B0616HP | 6 | 160 | 215 | 0.94 | 800 | P | / | / | / | / |
| K02-B0625GP | 6 | 250 | 305 | 0.61 | 800 | P | / | / | / | / |
| K02-B0625KP | 6 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0625HP | 6 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B0605GL | 6 | 50 | 105 | 0.61 | 450 | L | / | / | / | / |
| K02-B0605KL | 6 | 50 | 105 | 0.85 | 450 | L | / | / | / | / |
| K02-B0607GL | 6 | 70 | 125 | 0.61 | 450 | L | / | / | / | / |
| K02-B0607KL | 6 | 70 | 125 | 0.85 | 450 | L | / | / | / | / |
| K02-B0610GL | 6 | 100 | 155 | 0.61 | 450 | L | / | / | / | / |
| K02-B0610KL | 6 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0610HL | 6 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B0616GL | 6 | 160 | 215 | 0.61 | 800 | L | / | / | / | / |
| K02-B0616KL | 6 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-B0616HL | 6 | 160 | 215 | 0.94 | 800 | L | / | / | / | / |
| K02-B0625GL | 6 | 250 | 305 | 0.61 | 800 | L | / | / | / | / |
| K02-B0625KL | 6 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B0625HL | 6 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C0605GN | 6 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0605KN | 6 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0607GN | 6 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0607KN | 6 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0610GN | 6 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0610KN | 6 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0610HN | 6 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0616GN | 6 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0616KN | 6 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0616HN | 6 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0625GN | 6 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0625KN | 6 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0625HN | 6 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A0705GPZ | 7 | 50 | 105 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0705KPZ | 7 | 50 | 105 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0707GPZ | 7 | 70 | 125 | 0.61 | 450 | P | 0.7 | 51 | 2 | + |
| K02-A0707KPZ | 7 | 70 | 125 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0710KPZ | 7 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0710HPZ | 7 | 100 | 155 | 0.94 | 450 | P | 1.15 | 83 | 2 | + |
| K02-A0716KPZ | 7 | 160 | 215 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0716HPZ | 7 | 160 | 215 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0725KPZ | 7 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0725HPZ | 7 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0705GLZ | 7 | 50 | 105 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0705KLZ | 7 | 50 | 105 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0707GLZ | 7 | 70 | 125 | 0.61 | 450 | L | 0.7 | 51 | 2 | + |
| K02-A0707KLZ | 7 | 70 | 125 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0710KLZ | 7 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0710HLZ | 7 | 100 | 155 | 0.94 | 450 | L | 1.15 | 83 | 2 | + |
| K02-A0716KLZ | 7 | 160 | 215 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0716HLZ | 7 | 160 | 215 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-A0725KLZ | 7 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0725HLZ | 7 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B0705GP | 7 | 50 | 105 | 0.61 | 450 | P | / | / | / | / |
| K02-B0705KP | 7 | 50 | 105 | 0.85 | 450 | P | / | / | / | / |
| K02-B0707GP | 7 | 70 | 125 | 0.61 | 450 | P | / | / | / | / |
| K02-B0707KP | 7 | 70 | 125 | 0.85 | 450 | P | / | / | / | / |
| K02-B0710KP | 7 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0710HP | 7 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B0716KP | 7 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B0716HP | 7 | 160 | 215 | 0.94 | 800 | P | / | / | / | / |
| K02-B0725KP | 7 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0725HP | 7 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B0705GL | 7 | 50 | 105 | 0.61 | 450 | L | / | / | / | / |
| K02-B0705KL | 7 | 50 | 105 | 0.85 | 450 | L | / | / | / | / |
| K02-B0707GL | 7 | 70 | 125 | 0.61 | 450 | L | / | / | / | / |
| K02-B0707KL | 7 | 70 | 125 | 0.85 | 450 | L | / | / | / | / |
| K02-B0710KL | 7 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0710HL | 7 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B0716KL | 7 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-B0716HL | 7 | 160 | 215 | 0.94 | 800 | L | / | / | / | / |
| K02-B0725KL | 7 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B0725HL | 7 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C0705GN | 7 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0705KN | 7 | 50 | 105 | / | / | / | / | / | / | / |
| K02-C0707GN | 7 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0707KN | 7 | 70 | 125 | / | / | / | / | / | / | / |
| K02-C0710KN | 7 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0710HN | 7 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0716KN | 7 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0716HN | 7 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0725KN | 7 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0725HN | 7 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A0810KPZ | 8 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0810HPZ | 8 | 100 | 155 | 0.94 | 450 | P | 1.15 | 83 | 2 | + |
| K02-A0816KPZ | 8 | 160 | 215 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0816HPZ | 8 | 160 | 215 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0825KPZ | 8 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0825HPZ | 8 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0810KLZ | 8 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0810HLZ | 8 | 100 | 155 | 0.94 | 450 | L | 1.15 | 83 | 2 | + |
| K02-A0816KLZ | 8 | 160 | 215 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0816HLZ | 8 | 160 | 215 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-A0825KLZ | 8 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0825HLZ | 8 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B0810KP | 8 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0810HP | 8 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B0816KP | 8 | 160 | 215 | 0.85 | 800 | P | / | / | / | / |
| K02-B0816HP | 8 | 160 | 215 | 0.94 | 800 | P | / | / | / | / |
| K02-B0825KP | 8 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0825HP | 8 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B0810KL | 8 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0810HL | 8 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B0816KL | 8 | 160 | 215 | 0.85 | 800 | L | / | / | / | / |
| K02-B0816HL | 8 | 160 | 215 | 0.94 | 800 | L | / | / | / | / |
| K02-B0825KL | 8 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B0825HL | 8 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C0810KN | 8 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0810HN | 8 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0816KN | 8 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0816HN | 8 | 160 | 215 | / | / | / | / | / | / | / |
| K02-C0825KN | 8 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0825HN | 8 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A0910KPZ | 9 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A0910HPZ | 9 | 100 | 155 | 0.94 | 450 | P | 1.15 | 83 | 2 | + |
| K02-A0925KPZ | 9 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A0925HPZ | 9 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A0910KLZ | 9 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A0910HLZ | 9 | 100 | 155 | 0.94 | 450 | L | 1.15 | 83 | 2 | + |
| K02-A0925KLZ | 9 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A0925HLZ | 9 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B0910KP | 9 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B0910HP | 9 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B0925KP | 9 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B0925HP | 9 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B0910KL | 9 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B0910HL | 9 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B0925KL | 9 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B0925HL | 9 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C0910KN | 9 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0910HN | 9 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C0925KN | 9 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C0925HN | 9 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A1010KPZ | 10 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A1010HPZ | 10 | 100 | 155 | 0.94 | 450 | P | 1.15 | 83 | 2 | + |
| K02-A1025KPZ | 10 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A1025HPZ | 10 | 250 | 305 | 0.94 | 800 | P | 1.15 | 83 | 2 | + |
| K02-A1010KLZ | 10 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A1010HLZ | 10 | 100 | 155 | 0.94 | 450 | L | 1.15 | 83 | 2 | + |
| K02-A1025KLZ | 10 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A1025HLZ | 10 | 250 | 305 | 0.94 | 800 | L | 1.15 | 83 | 2 | + |
| K02-B1010KP | 10 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B1010HP | 10 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B1025KP | 10 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B1025HP | 10 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B1010KL | 10 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B1010HL | 10 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B1025KL | 10 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B1025HL | 10 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C1010KN | 10 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C1010HN | 10 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C1025KN | 10 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C1025HN | 10 | 250 | 305 | / | / | / | / | / | / | / |
| K02-A1110KPZ | 11 | 100 | 155 | 0.85 | 450 | P | 0.9 | 83 | 2 | + |
| K02-A1110HPZ | 11 | 100 | 155 | 0.94 | 450 | P | 1.15 | 75 | 2 | + |
| K02-A1125KPZ | 11 | 250 | 305 | 0.85 | 800 | P | 0.9 | 83 | 2 | + |
| K02-A1125HPZ | 11 | 250 | 305 | 0.94 | 800 | P | 1.15 | 75 | 2 | + |
| K02-A1110KLZ | 11 | 100 | 155 | 0.85 | 450 | L | 0.9 | 83 | 2 | + |
| K02-A1110HLZ | 11 | 100 | 155 | 0.94 | 450 | L | 1.15 | 75 | 2 | + |
| K02-A1125KLZ | 11 | 250 | 305 | 0.85 | 800 | L | 0.9 | 83 | 2 | + |
| K02-A1125HLZ | 11 | 250 | 305 | 0.94 | 800 | L | 1.15 | 75 | 2 | + |
| K02-B1110KP | 11 | 100 | 155 | 0.85 | 450 | P | / | / | / | / |
| K02-B1110HP | 11 | 100 | 155 | 0.94 | 450 | P | / | / | / | / |
| K02-B1125KP | 11 | 250 | 305 | 0.85 | 800 | P | / | / | / | / |
| K02-B1125HP | 11 | 250 | 305 | 0.94 | 800 | P | / | / | / | / |
| K02-B1110KL | 11 | 100 | 155 | 0.85 | 450 | L | / | / | / | / |
| K02-B1110HL | 11 | 100 | 155 | 0.94 | 450 | L | / | / | / | / |
| K02-B1125KL | 11 | 250 | 305 | 0.85 | 800 | L | / | / | / | / |
| K02-B1125HL | 11 | 250 | 305 | 0.94 | 800 | L | / | / | / | / |
| K02-C1110KN | 11 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C1110HN | 11 | 100 | 155 | / | / | / | / | / | / | / |
| K02-C1125KN | 11 | 250 | 305 | / | / | / | / | / | / | / |
| K02-C1125HN | 11 | 250 | 305 | / | / | / | / | / | / | / |

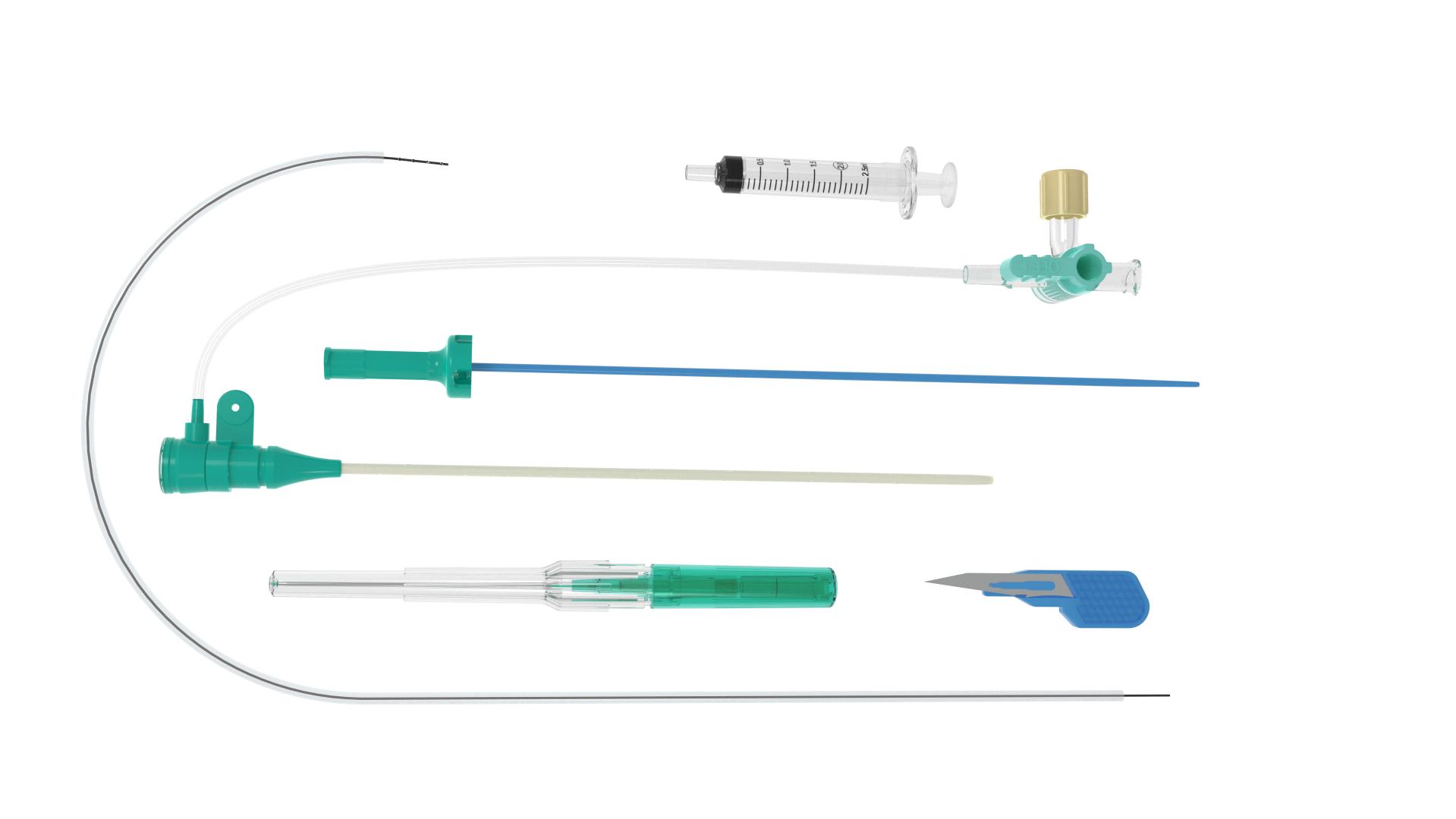

VascEase™ Flux Introducer Sheath
The VascEase™ Flux Introducer Sheath delivers smoother device delivery with enhanced lubricity. It offers excellent kink resistance and consistent performance for reliable vascular access in everyday procedures.
Whether you are looking for product information, technical assistance, OEM/ODM services, or partnership opportunities, our team is ready to help.
