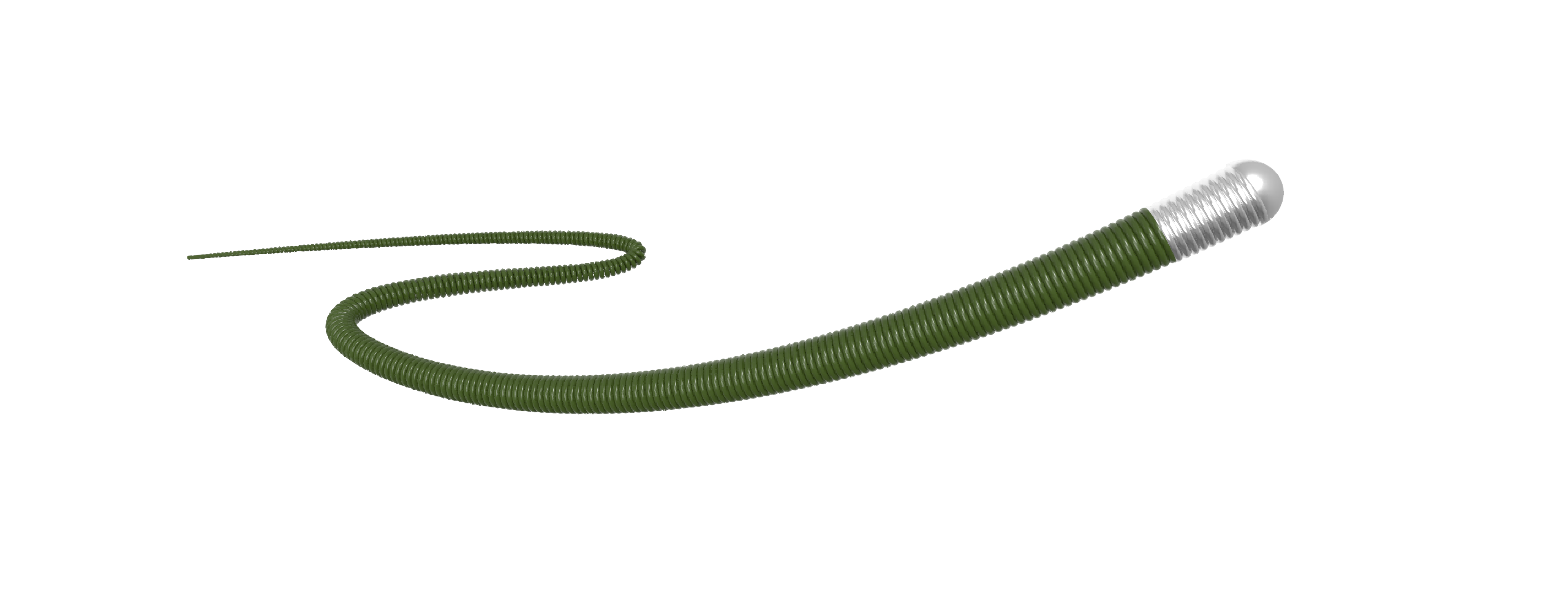

Revela™ Diagnostic Guidewire

The Revela™ Diagnostic Guidewire features a stainless steel core with PTFE coating. It is designed for use in diagnostic angiography, providing good torque response and smooth navigation.

Ordering information Contact a representative

Product Features

Precision Grinding Process

Helps maintain consistent core-wire dimensions for reliable product performance.

Enhanced Support and Torque Control

The SUS 304 stainless-steel shaft provides increased rigidity and dependable support when navigating complex lesions, while delivering responsive torque transmission and precise guidewire control

Smooth Advancement

The PTFE-coated surface reduces friction, enabling smooth guidewire advancement and facilitating procedural handling.

Reliable Tip Shape Retention

Advanced tip-shaping technology helps the angiographic guidewire retain its intended tip configuration throughout lengthy and challenging procedures

Product Specifications

Angiographic Guidewire Specifications

Code↕	Diameter (inch)↕	Length (cm)↕	Tip Length (cm)↕	Tip Shape↕
K06-DG-GR-A2515073	0.025	150	7	J Curve (3mm)
K06-DG-GR-A3215073	0.032	150	7	J Curve (3mm)
K06-DG-GI-A3215070	0.032	150	7	Straight
K06-DG-GR-A3515073	0.035	150	7	J Curve (3mm)
K06-DG-GR-A3515076	0.035	150	7	J Curve (3mm)
K06-DG-GI-A3515070	0.035	150	7	Straight
K06-DG-GI-A3515100	0.035	150	10	Straight
K06-DG-GI-A3515110	0.035	150	11	Straight
K06-DG-GI-A3515150	0.035	150	15	Straight
K06-DG-GR-A3815073	0.038	150	7	J Curve (3mm)
K06-DG-GR-B2526073	0.025	260	7	J Curve (3mm)
K06-DG-GR-B3226073	0.032	260	7	J Curve (3mm)
K06-DG-GI-B3226070	0.032	260	7	Straight
K06-DG-GR-B3526073	0.035	260	7	J Curve (3mm)
K06-DG-GI-B3526070	0.035	260	7	Straight
K06-DG-GR-B3826073	0.038	260	7	J Curve (3mm)
K06-DG-GR-C3515003	0.035	150	0	J Curve (3mm)
K06-DG-GI-D3526000	0.035	260	0	Straight
