| Code↕ | Balloon Diameter (mm)↕ | Balloon Length (mm)↕ | Catheter Length (mm)↕ | NP (atm)↕ | RBP (atm)↕ |
|---|---|---|---|---|---|
| K34-2006 | 2 | 6 | 1430 | 12 | 20 |
| K34-2009 | 2 | 9 | 1430 | 12 | 20 |
| K34-2012 | 2 | 12 | 1430 | 12 | 20 |
| K34-2015 | 2 | 15 | 1430 | 12 | 20 |
| K34-2020 | 2 | 20 | 1430 | 12 | 20 |
| K34-2030 | 2 | 30 | 1430 | 12 | 20 |
| K34-2206 | 2.25 | 6 | 1430 | 12 | 20 |
| K34-2209 | 2.25 | 9 | 1430 | 12 | 20 |
| K34-2212 | 2.25 | 12 | 1430 | 12 | 20 |
| K34-2215 | 2.25 | 15 | 1430 | 12 | 20 |
| K34-2220 | 2.25 | 20 | 1430 | 12 | 20 |
| K34-2230 | 2.25 | 30 | 1430 | 12 | 20 |
| K34-2506 | 2.5 | 6 | 1430 | 12 | 20 |
| K34-2509 | 2.5 | 9 | 1430 | 12 | 20 |
| K34-2512 | 2.5 | 12 | 1430 | 12 | 20 |
| K34-2515 | 2.5 | 15 | 1430 | 12 | 20 |
| K34-2520 | 2.5 | 20 | 1430 | 12 | 20 |
| K34-2530 | 2.5 | 30 | 1430 | 12 | 20 |
| K34-2706 | 2.75 | 6 | 1430 | 12 | 20 |
| K34-2709 | 2.75 | 9 | 1430 | 12 | 20 |
| K34-2712 | 2.75 | 12 | 1430 | 12 | 20 |
| K34-2715 | 2.75 | 15 | 1430 | 12 | 20 |
| K34-2720 | 2.75 | 20 | 1430 | 12 | 20 |
| K34-2730 | 2.75 | 30 | 1430 | 12 | 20 |
| K34-3006 | 3 | 6 | 1430 | 12 | 20 |
| K34-3009 | 3 | 9 | 1430 | 12 | 20 |
| K34-3012 | 3 | 12 | 1430 | 12 | 20 |
| K34-3015 | 3 | 15 | 1430 | 12 | 20 |
| K34-3020 | 3 | 20 | 1430 | 12 | 20 |
| K34-3030 | 3 | 30 | 1430 | 12 | 20 |
| K34-3206 | 3.25 | 6 | 1430 | 12 | 20 |
| K34-3209 | 3.25 | 9 | 1430 | 12 | 20 |
| K34-3212 | 3.25 | 12 | 1430 | 12 | 20 |
| K34-3215 | 3.25 | 15 | 1430 | 12 | 20 |
| K34-3220 | 3.25 | 20 | 1430 | 12 | 20 |
| K34-3230 | 3.25 | 30 | 1430 | 12 | 20 |
| K34-3506 | 3.5 | 6 | 1430 | 12 | 20 |
| K34-3509 | 3.5 | 9 | 1430 | 12 | 20 |
| K34-3512 | 3.5 | 12 | 1430 | 12 | 20 |
| K34-3515 | 3.5 | 15 | 1430 | 12 | 20 |
| K34-3520 | 3.5 | 20 | 1430 | 12 | 20 |
| K34-3530 | 3.5 | 30 | 1430 | 12 | 20 |
| K34-3706 | 3.75 | 6 | 1430 | 12 | 20 |
| K34-3709 | 3.75 | 9 | 1430 | 12 | 20 |
| K34-3712 | 3.75 | 12 | 1430 | 12 | 20 |
| K34-3715 | 3.75 | 15 | 1430 | 12 | 20 |
| K34-3720 | 3.75 | 20 | 1430 | 12 | 20 |
| K34-3730 | 3.75 | 30 | 1430 | 12 | 20 |
| K34-4006 | 4 | 6 | 1430 | 12 | 20 |
| K34-4009 | 4 | 9 | 1430 | 12 | 20 |
| K34-4012 | 4 | 12 | 1430 | 12 | 20 |
| K34-4015 | 4 | 15 | 1430 | 12 | 20 |
| K34-4020 | 4 | 20 | 1430 | 12 | 20 |
| K34-4030 | 4 | 30 | 1430 | 12 | 20 |
| K34-4506 | 4.5 | 6 | 1430 | 12 | 18 |
| K34-4509 | 4.5 | 9 | 1430 | 12 | 18 |
| K34-4512 | 4.5 | 12 | 1430 | 12 | 18 |
| K34-4515 | 4.5 | 15 | 1430 | 12 | 18 |
| K34-4520 | 4.5 | 20 | 1430 | 12 | 18 |
| K34-4530 | 4.5 | 30 | 1430 | 12 | 18 |
| K34-5006 | 5 | 6 | 1430 | 12 | 18 |
| K34-5009 | 5 | 9 | 1430 | 12 | 18 |
| K34-5012 | 5 | 12 | 1430 | 12 | 18 |
| K34-5015 | 5 | 15 | 1430 | 12 | 18 |
| K34-5020 | 5 | 20 | 1430 | 12 | 18 |
| K34-5030 | 5 | 30 | 1430 | 12 | 18 |

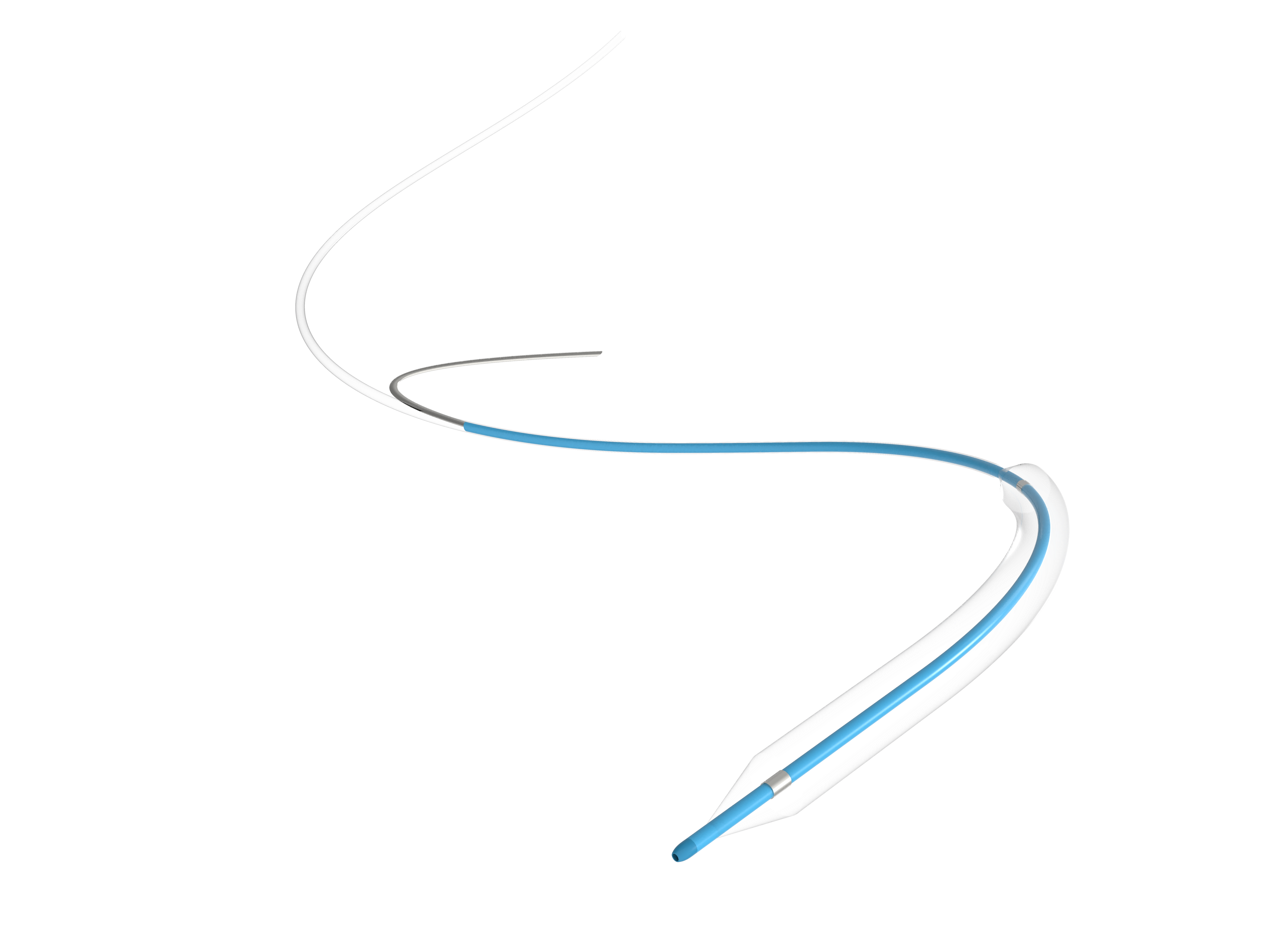

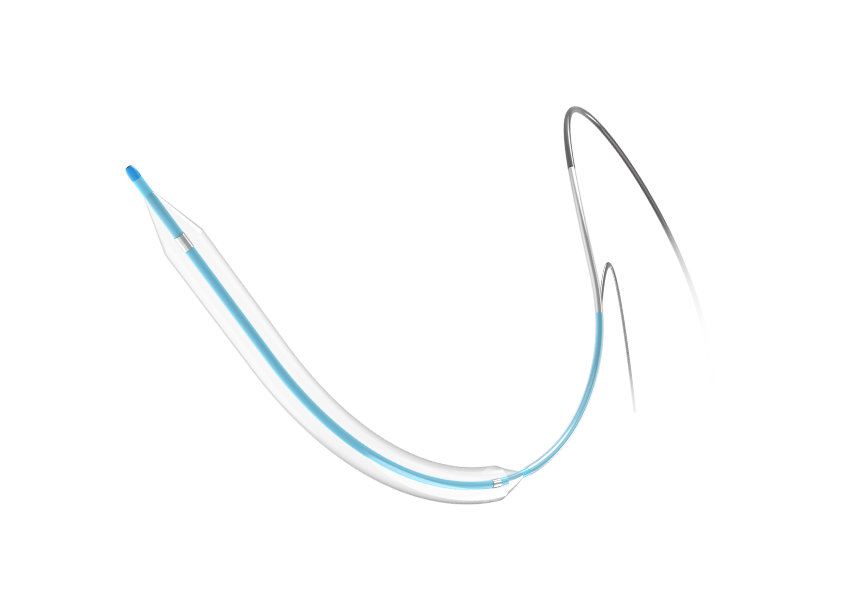

Novacor™ NC Balloon Dilatation Catheter
The Novacor™ NC Balloon Dilatation Catheter is designed for high-pressure dilatation with controlled expansion. It provides reliable rewrap performance for precise lesion treatment.
Product Features
Optimized Pushability and Crossability
The proximal shaft provides reliable pushability, while the flexible distal section supports smooth advancement through challenging anatomy.

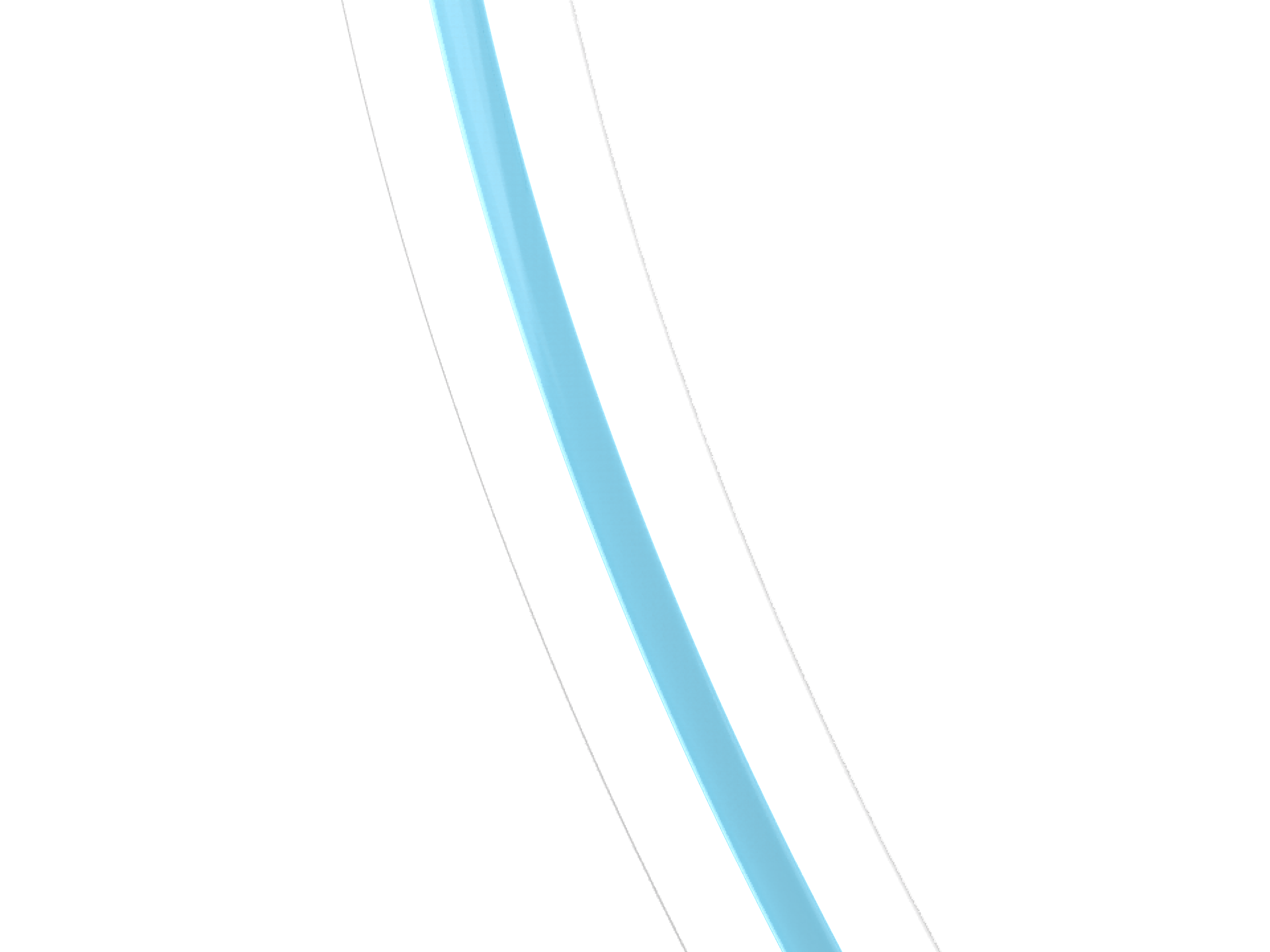

High Rated Burst Pressure
Designed to dilate resistant stenotic lesions, with reduced balloon shoulder growth at rated burst pressure for precise and controlled expansion.

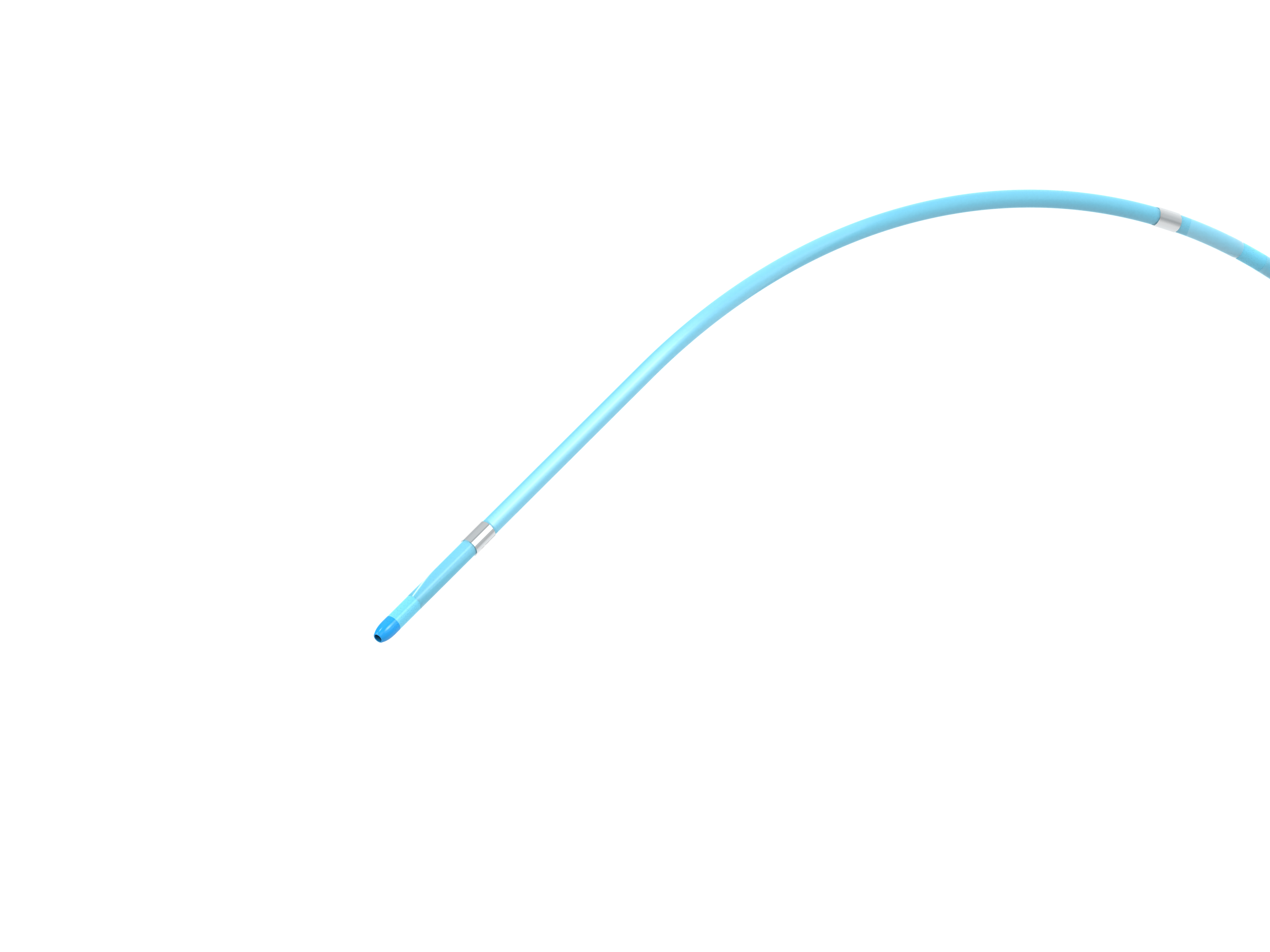

Non-Compliant Balloon
The non-compliant balloon provides reliable performance for post-dilatation following stent deployment. Its thin-wall construction maintains a low crossing profile for enhanced crossability.

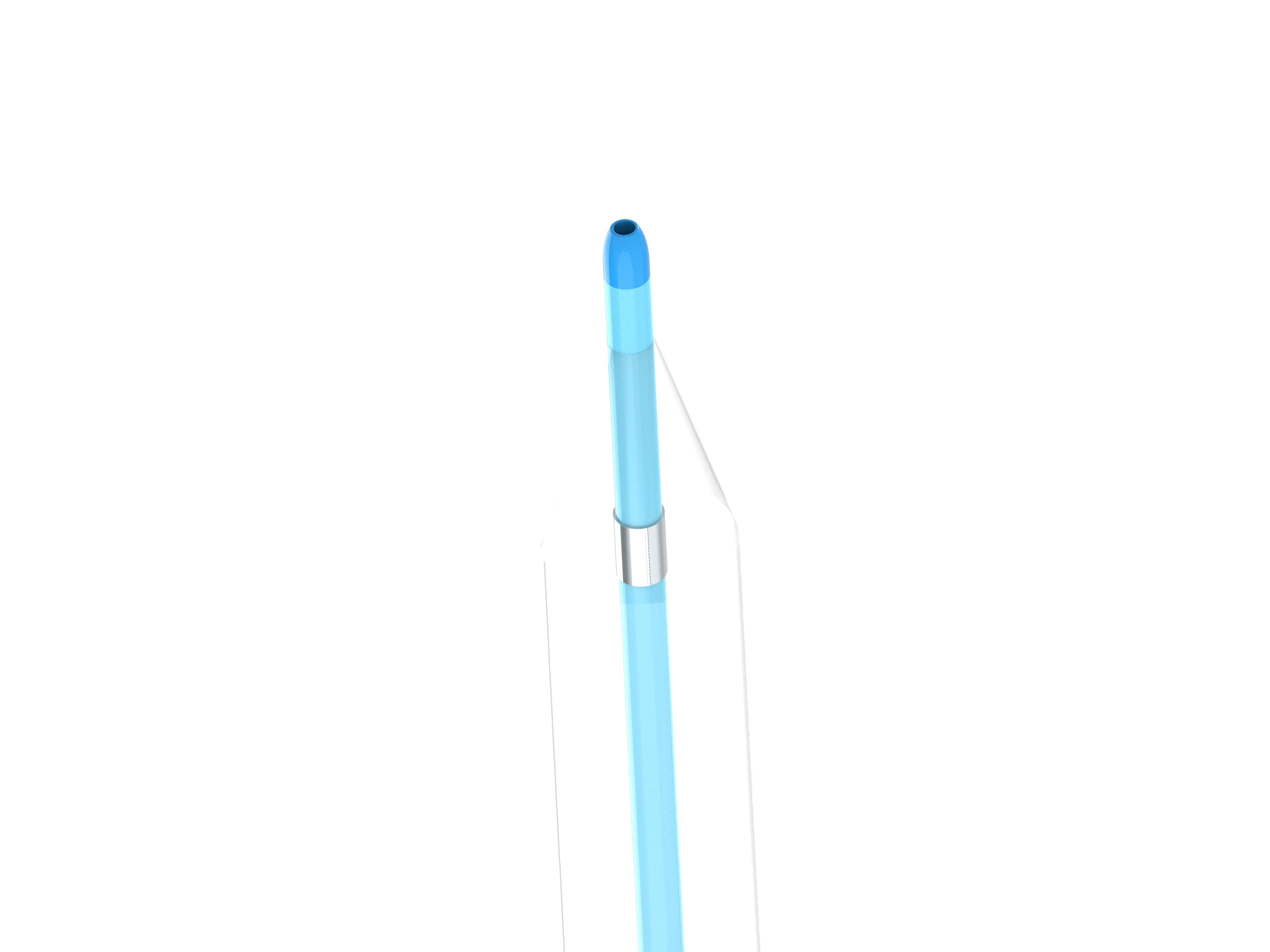

Enhanced Fluoroscopic Visibility
Platinum-iridium marker bands provide clear radiopacity for accurate balloon positioning under fluoroscopy.
