| Code↕ | Sheath Size (Fr)↕ | Sheath Length (cm)↕ | Dilator Length (cm)↕ | Guidewire Size (mm)↕ | Guidewire Length (cm)↕ | Guidewire Tip Shape↕ | Needle Size (G)↕ | Needle Length (mm)↕ |
|---|---|---|---|---|---|---|---|---|
| K01-P10455M | 4F | 5.5 | 10.5 | 0.85 | 45 | Angled | 18 | 70 |
| K01-P10555M | 5F | 5.5 | 10.5 | 0.85 | 45 | Angled | 18 | 70 |
| K01-P10655M | 6F | 5.5 | 10.5 | 0.85 | 45 | Angled | 18 | 70 |
| K01-P10755M | 7F | 5.5 | 10.5 | 0.85 | 45 | Angled | 18 | 70 |
| K01-P10855M | 8F | 5.5 | 10.5 | 0.85 | 45 | Angled | 18 | 70 |
| K01-P10455N | 4F | 5.5 | 10.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-P10555N | 5F | 5.5 | 10.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-P10655N | 6F | 5.5 | 10.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-P10755N | 7F | 5.5 | 10.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-P10855N | 8F | 5.5 | 10.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-P20455M | 4F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20555M | 5F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20655M | 6F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20755M | 7F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20855M | 8F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20455N | 4F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20555N | 5F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20655N | 6F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20755N | 7F | 5.5 | 10.5 | / | / | / | / | / |
| K01-P20855N | 8F | 5.5 | 10.5 | / | / | / | / | / |
| K01-S10475L | 4F | 7.5 | 12.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-S10575L | 5F | 7.5 | 12.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-S10675L | 6F | 7.5 | 12.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-S20475L | 4F | 7.5 | 12.5 | / | / | / | / | / |
| K01-S20575L | 5F | 7.5 | 12.5 | / | / | / | / | / |
| K01-S20675L | 6F | 7.5 | 12.5 | / | / | / | / | / |
| K01-Z10411L | 4F | 11 | 16 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z10511L | 5F | 11 | 16 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z10611L | 6F | 11 | 17.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z10711L | 7F | 11 | 17.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z10811L | 8F | 11 | 17.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z10911L | 9F | 11 | 17.5 | 0.53 | 47 | Straight | 21 | 38 |
| K01-Z20411L | 4F | 11 | 16 | / | / | / | / | / |
| K01-Z20511L | 5F | 11 | 16 | / | / | / | / | / |
| K01-Z20611L | 6F | 11 | 17.5 | / | / | / | / | / |
| K01-Z20711L | 7F | 11 | 17.5 | / | / | / | / | / |
| K01-Z20811L | 8F | 11 | 17.5 | / | / | / | / | / |
| K01-Z20911L | 9F | 11 | 17.5 | / | / | / | / | / |
| K01-X10411M | 4F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10511M | 5F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X15511M | 5.5F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10611M | 6F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X16511M | 6.5F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10711M | 7F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X17511M | 7.5F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10811M | 8F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X18511M | 8.5F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10911M | 9F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X11011M | 10F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X11111M | 11F | 11 | 16 | 0.85 | 45 | Angled | 18 | 70 |
| K01-X10411N | 4F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X10511N | 5F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X15511N | 5.5F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X10611N | 6F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X16511N | 6.5F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X10711N | 7F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X17511N | 7.5F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X10811N | 8F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X18511N | 8.5F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X10911N | 9F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X11011N | 10F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X11111N | 11F | 11 | 16 | 0.94 | 45 | Angled | 18 | 70 |
| K01-X20411M | 4F | 11 | 16 | / | / | / | / | / |
| K01-X20511M | 5F | 11 | 16 | / | / | / | / | / |
| K01-X25511M | 5.5F | 11 | 16 | / | / | / | / | / |
| K01-X20611M | 6F | 11 | 16 | / | / | / | / | / |
| K01-X26511M | 6.5F | 11 | 16 | / | / | / | / | / |
| K01-X20711M | 7F | 11 | 16 | / | / | / | / | / |
| K01-X27511M | 7.5F | 11 | 16 | / | / | / | / | / |
| K01-X20811M | 8F | 11 | 16 | / | / | / | / | / |
| K01-X28511M | 8.5F | 11 | 16 | / | / | / | / | / |
| K01-X20911M | 9F | 11 | 16 | / | / | / | / | / |
| K01-X21011M | 10F | 11 | 16 | / | / | / | / | / |
| K01-X21111M | 11F | 11 | 16 | / | / | / | / | / |
| K01-X20411N | 4F | 11 | 16 | / | / | / | / | / |
| K01-X20511N | 5F | 11 | 16 | / | / | / | / | / |
| K01-X25511N | 5.5F | 11 | 16 | / | / | / | / | / |
| K01-X20611N | 6F | 11 | 16 | / | / | / | / | / |
| K01-X26511N | 6.5F | 11 | 16 | / | / | / | / | / |
| K01-X20711N | 7F | 11 | 16 | / | / | / | / | / |
| K01-X27511N | 7.5F | 11 | 16 | / | / | / | / | / |
| K01-X20811N | 8F | 11 | 16 | / | / | / | / | / |
| K01-X28511N | 8.5F | 11 | 16 | / | / | / | / | / |
| K01-X20911N | 9F | 11 | 16 | / | / | / | / | / |
| K01-X21011N | 10F | 11 | 16 | / | / | / | / | / |
| K01-X21111N | 11F | 11 | 16 | / | / | / | / | / |
| K01-V10611N | 6F | 11 | 16 | 0.94 | 45 | Straight | 18 | 70 |
| K01-V10711N | 7F | 11 | 16 | 0.94 | 45 | Straight | 18 | 70 |
| K01-V10811N | 8F | 11 | 16 | 0.94 | 45 | Straight | 18 | 70 |
| K01-V20611N | 6F | 11 | 16 | / | / | / | / | / |
| K01-V20711N | 7F | 11 | 16 | / | / | / | / | / |
| K01-V20811N | 8F | 11 | 16 | / | / | / | / | / |
| K01-Z10423Q | 4F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z10523Q | 5F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z10623Q | 6F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z10723Q | 7F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z10823Q | 8F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z10923Q | 9F | 23 | 30 | 0.53 | 70 | Angled | 21 | 38 |
| K01-Z20423Q | 4F | 23 | 30 | / | / | / | / | / |
| K01-Z20523Q | 5F | 23 | 30 | / | / | / | / | / |
| K01-Z20623Q | 6F | 23 | 30 | / | / | / | / | / |
| K01-Z20723Q | 7F | 23 | 30 | / | / | / | / | / |
| K01-Z20823Q | 8F | 23 | 30 | / | / | / | / | / |
| K01-Z20923Q | 9F | 23 | 30 | / | / | / | / | / |
| K01-T10423W | 4F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10523W | 5F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T15523W | 5.5F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10623W | 6F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T16523W | 6.5F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10723W | 7F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T17523W | 7.5F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10823W | 8F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T18523W | 8.5F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10923W | 9F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T11023W | 10F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T11123W | 11F | 23 | 28 | 0.85 | 70 | Angled | 18 | 70 |
| K01-T10423Y | 4F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10523Y | 5F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T15523Y | 5.5F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10623Y | 6F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T16523Y | 6.5F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10723Y | 7F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T17523Y | 7.5F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10823Y | 8F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T18523Y | 8.5F | 23 | 29.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10923Y | 9F | 23 | 31.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T11023Y | 10F | 23 | 31.5 | 0.94 | 70 | Angled | 18 | 70 |
| K01-T10423N | 4F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T10523N | 5F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T15523N | 5.5F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T10623N | 6F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T16523N | 6.5F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T10723N | 7F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T17523N | 7.5F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T10823N | 8F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T18523N | 8.5F | 23 | 29.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T10923N | 9F | 23 | 31.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T11023N | 10F | 23 | 31.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T11123N | 11F | 23 | 31.5 | 0.94 | 45 | Angled | 18 | 70 |
| K01-T20423W | 4F | 23 | 28 | / | / | / | / | / |
| K01-T20523W | 5F | 23 | 28 | / | / | / | / | / |
| K01-T25523W | 5.5F | 23 | 28 | / | / | / | / | / |
| K01-T20623W | 6F | 23 | 28 | / | / | / | / | / |
| K01-T26523W | 6.5F | 23 | 28 | / | / | / | / | / |
| K01-T20723W | 7F | 23 | 28 | / | / | / | / | / |
| K01-T27523W | 7.5F | 23 | 28 | / | / | / | / | / |
| K01-T20823W | 8F | 23 | 28 | / | / | / | / | / |
| K01-T28523W | 8.5F | 23 | 28 | / | / | / | / | / |
| K01-T20923W | 9F | 23 | 28 | / | / | / | / | / |
| K01-T21023W | 10F | 23 | 28 | / | / | / | / | / |
| K01-T21123W | 11F | 23 | 28 | / | / | / | / | / |
| K01-T20423Y | 4F | 23 | 29.5 | / | / | / | / | / |
| K01-T20523Y | 5F | 23 | 29.5 | / | / | / | / | / |
| K01-T25523Y | 5.5F | 23 | 29.5 | / | / | / | / | / |
| K01-T20623Y | 6F | 23 | 29.5 | / | / | / | / | / |
| K01-T26523Y | 6.5F | 23 | 29.5 | / | / | / | / | / |
| K01-T20723Y | 7F | 23 | 29.5 | / | / | / | / | / |
| K01-T27523Y | 7.5F | 23 | 29.5 | / | / | / | / | / |
| K01-T20823Y | 8F | 23 | 29.5 | / | / | / | / | / |
| K01-T28523Y | 8.5F | 23 | 29.5 | / | / | / | / | / |
| K01-T20923Y | 9F | 23 | 29.5 | / | / | / | / | / |
| K01-T21023Y | 10F | 23 | 29.5 | / | / | / | / | / |
| K01-T21123Y | 11F | 23 | 29.5 | / | / | / | / | / |
| K01-Z10411A | 4F | 11 | 16 | 0.53 | 45 | Straight | 21 | 38 |
| K01-Z10511A | 5F | 11 | 16 | 0.53 | 45 | Straight | 21 | 38 |
| K01-Z10611A | 6F | 11 | 17.5 | 0.53 | 45 | Straight | 21 | 38 |

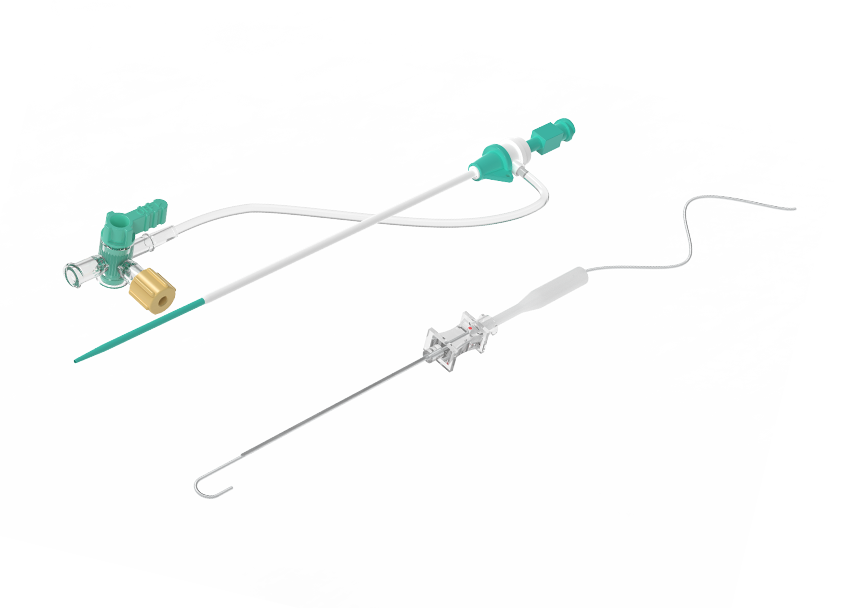

VascEase™ Introducer Sheath

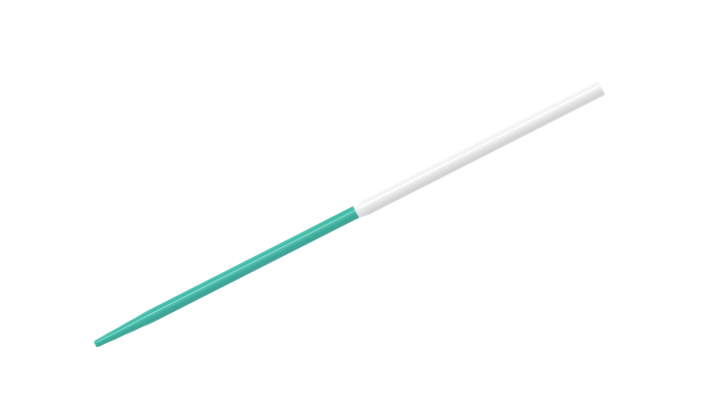

The VascEase™ Introducer Sheath delivers reliable vascular access with an optimized thin-wall design. It offers excellent kink resistance, smooth transitions, and consistent device delivery for dependable performance in cardiology and endovascular procedures.
Whether you are looking for product information, technical assistance, OEM/ODM services, or partnership opportunities, our team is ready to help.
